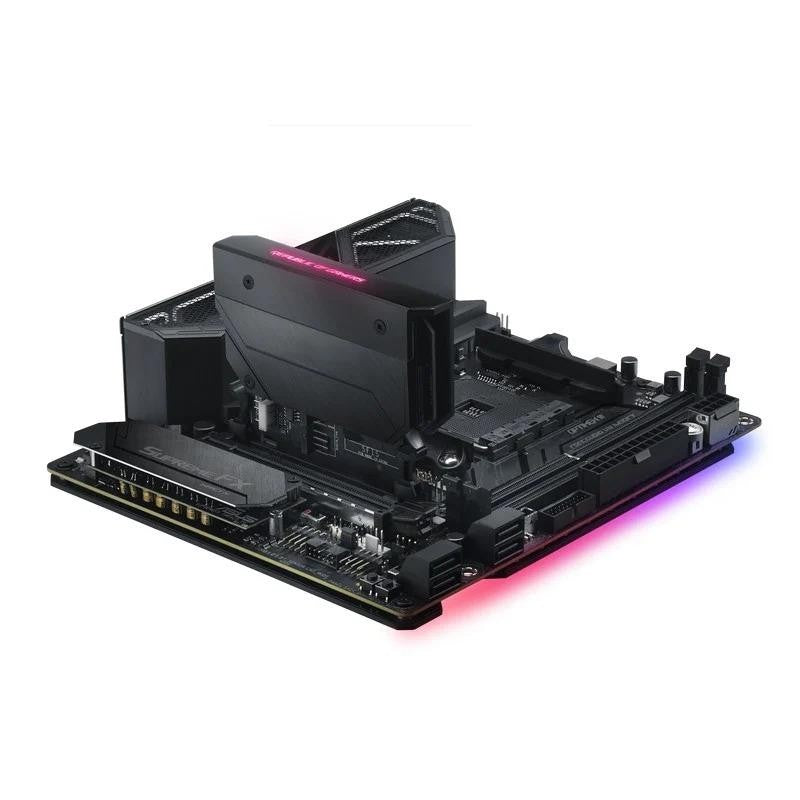

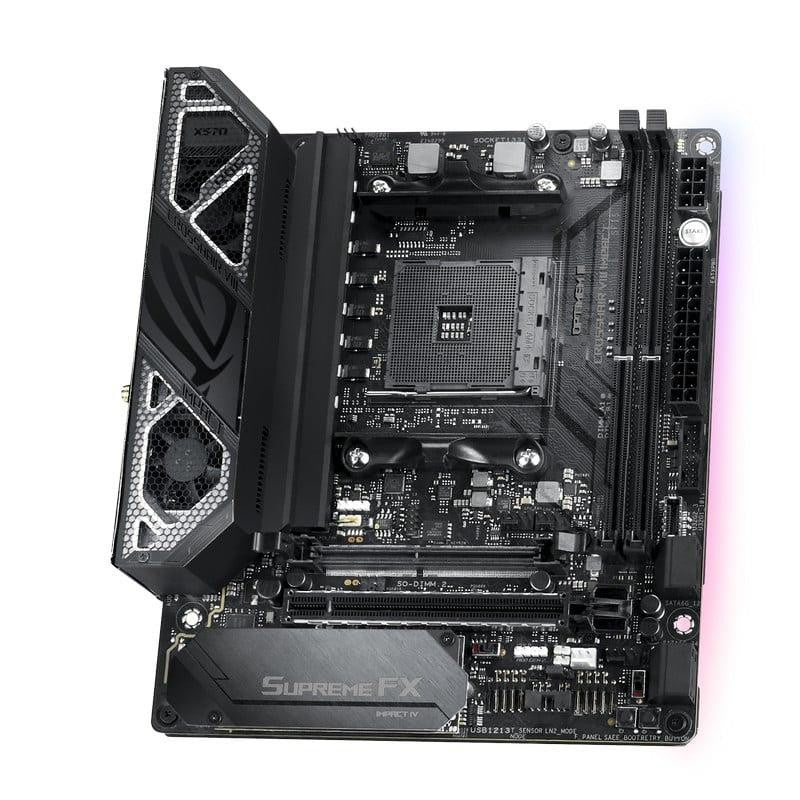

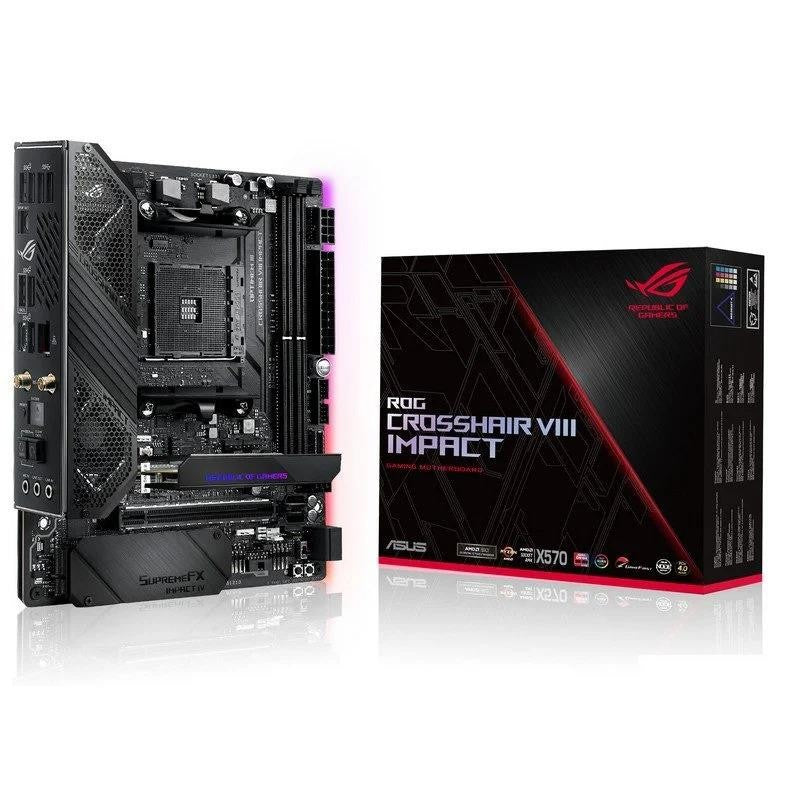

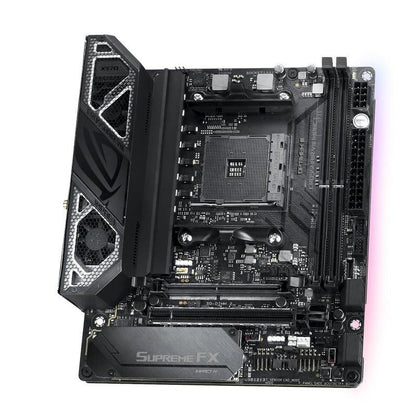

PLACA BASE ASUS TOG CROSSHAIR VIII IMPACT X570 WIFI ATX AM4 2XDDR4 USB-C
PLACA BASE ASUS TOG CROSSHAIR VIII IMPACT X570 WIFI ATX AM4 2XDDR4 USB-C
No se pudo cargar la disponibilidad de retiro
Placa base de gaming para entusiastas mini-DTX AMD AM4 X570 con tarjeta SO-DIMM.2 (dos M.2), Wi-Fi 6 (802.11 ax), PCIe 4.0, sonido SupremeFX, iluminación Aura Sync RGB LED, SATA 6 Gb/s y USB 3.2 Gen. 2
Descripción
Características:
Zócalo AM4: Compatible con los procesadores AMD Ryzen? de 3.ª y 2.ª Gen para maximizar la velocidad y conectividad con dos unidades M.2, USB 3.2 Gen. 2 y AMD StoreMI.
SO-DIMM.2: Tarjeta de ampliación incluida con dos ranuras M.2 y un disipador térmico que permite que los SSD funcionen a pleno rendimiento.
Diseño térmico completo: Disipador activo combinado para el VRM y el chipset y una placa trasera de aluminio con un caloducto que añade masa y ayuda a absorber más temperatura.
Wi-Fi 6 (802.11ax) con MU-MIMO, Intel Gigabit Ethernet con ASUS LANGuard y las funciones GameFirst V.
Funciones de refrigeración líquida avanzadas: La Zona de Refrigeración Líquida ROG; y los conectores para bombas de agua y radiadores facilitan la integración de sistemas a medida.
5-Way Optimization: Ajustes automáticos de todo el sistema con perfiles de overclocking y refrigeración creados específicamente para tu equipo.
DIY sencillo: Cajetín de E/S, ASUS SafeSlot e IMPACT Control Card VI, que añade la funciones BIOS Flashback, Clr CMOS, Q-Code y FlexKey.
Personalización inigualable: Iluminación Aura Sync RGB, incluye conectores RGB y conectores direccionables de 2.ª Gen.
El sonido que lidera la industria: SupremeFX S1220 y ESS® SABRE9023P para un sonido de alta fidelidad, Sonic Studio III y DTS Sound Unbound.
Especificaciones técnicas
| Asus ROG Crosshair VIII Impact | |
| CPU | |
| AMD AM4 Socket 3rd and 2nd AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors | |
| Chipset | |
| AMD X570 | |
| Memory | |
| 3rd Gen AMD Ryzen? Processors | |
| 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory | |
| 2nd Gen AMD Ryzen? Processors | |
| 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory | |
| 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors | |
| 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| * Double Capcity DRAM support depends on the DRAM models | |
| Expansion Slots | |
| 3rd Gen AMD Ryzen? Processors | |
| 1 x PCIe 4.0 x16 (x16 mode) | |
| 2nd Gen AMD Ryzen? Processors | |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors | |
| 1 x PCIe 3.0 x16 (x8 mode) | |
| Storage | |
| 3rd Gen AMD Ryzen? Processors : | |
| 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support | |
| 2nd Gen AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors : | |
| 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| AMD X570 chipset : | |
| 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support | |
| 4 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| LAN | |
| Intel® I211-AT | |
| ASUS LAN Guard | |
| ROG GameFirst Technology | |
| Wireless Data Network | |
| Intel® Wi-Fi 6 AX200 | |
| Supports channel bandwidth | HT20/HT40/HT80/HT160 |
| 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz | |
| Up to 2.4Gbps transfer speed | |
| Bluetooth | |
| Bluetooth® 5.0 | |
| Audio | |
| ROG SupremeFX 8-Channel High Definition Audio CODEC | |
| Impedance sense for front and rear headphone outputs | |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| SupremeFX Shielding Technology | |
| ESS® ES9023P | |
| Supports up to 32-Bit/192kHz playback | |
| Audio Feature : | |
| Sonic Studio III + Sonic Studio Virtual Mixer | |
| DTS® Sound Unbound | |
| Optical S/PDIF out port(s) at back panel | |
| Sonic Radar III | |
| * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| USB Ports | |
| 3rd Gen AMD RyzenTM Processors : | |
| 2 x USB 3.2 Gen 2 port(s) | |
| 3rd Gen AMD RyzenTM Processors : | |
| 2 x USB 3.2 Gen 1 port(s) | |
| 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors : | |
| 4 x USB 3.2 Gen 1 port(s) | |
| AMD X570 chipset : | |
| 1 x USB 3.2 Gen 2 front panel connector port(s) | |
| AMD X570 chipset : | |
| 4 x USB 3.2 Gen 2 port(s) | |
| AMD X570 chipset : | |
| 2 x USB 3.2 Gen 1 port(s) | |
| AMD X570 chipset : | |
| 2 x USB 2.0 port(s) | |
| ROG Exclusive Features | |
| Extreme Engine Digi+ : | |
| Infineon TDA21472 Power Stage | |
| MicroFine Alloy Chokes | |
| 10K Black Metallic Capacitors | |
| ROG Extreme OC kit : | |
| OptiMem III | |
| Safe Boot button | |
| Slow Mode | |
| LN2 Mode | |
| Extreme Tweaker | |
| ROG Patented Pre-mounted I/O Shield | |
| ROG Exclusive Software | |
| Sonic Studio III + Sonic Studio Virtual Mixer | |
| RAMCache III | |
| RAMDisk | |
| CPU-Z | |
| GameFirst V | |
| Sonic Radar III | |
| Special Features | |
| ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : | |
| 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App | |
| AURA : | |
| Aura Lighting Effects Synchronization with compatible ASUS ROG devices | |
| ASUS Exclusive Features : | |
| USB BIOS Flashback® | |
| AI Suite 3 | |
| Ai Charger | |
| ASUS CrashFree BIOS 3 | |
| Armoury Crate | |
| ASUS NODE | hardware control interface |
| ASUS EZ Flash 3 | |
| ASUS C.P.R.(CPU Parameter Recall) | |
| Clear CMOS Button | |
| Reset Button | |
| Start Button | |
| ReTry button | |
| ASUS Q-Design : | |
| ASUS Q-Code | |
| ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| ASUS Q-Slot | |
| ASUS Q-DIMM | |
| ASUS Q-Connector | |

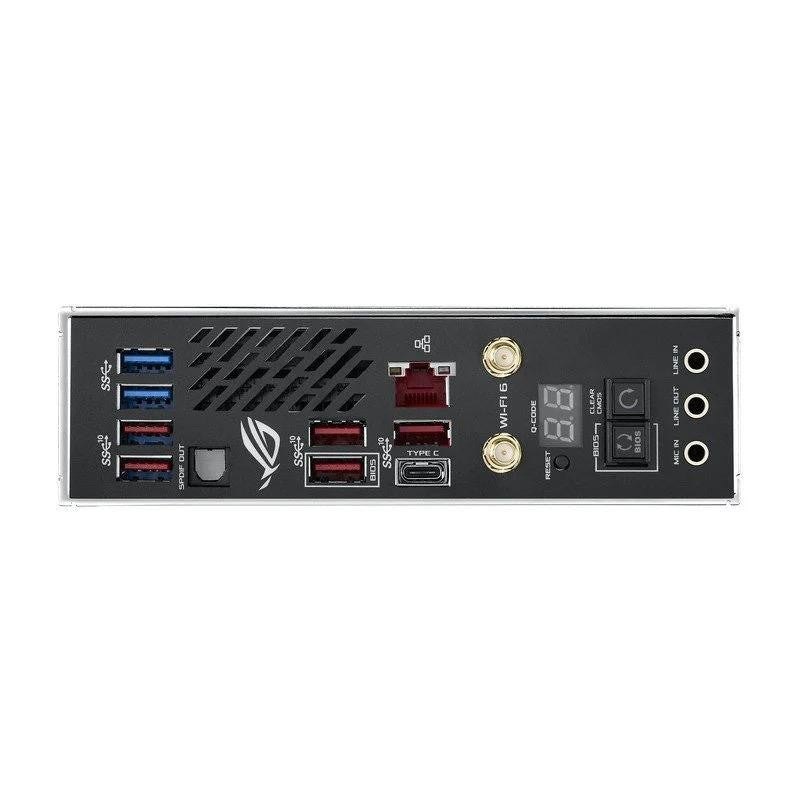

| Back I/O Ports | |
| 1 x Optical S/PDIF out | |
| 1 x Clear CMOS button(s) | |
| 1 x USB BIOS Flashback® Button(s) | |
| 1 x ASUS Wi-Fi Module | |
| 1 x Q-Code LED | |
| 1 x Reset Button | |
| 3 x LED-illuminated audio jacks | |
| 2 x USB 3.2 Gen 1 (up to 5Gbps) ports | |
| 6 x USB 3.2 Gen 2 (up to 10Gbps) ports () | |
| Anti-surge LAN (RJ45) port | |
| Internal I/O Ports | |
| 1 x Aura RGB Strip Headers | |
| 2 x Addressable Gen 2 header(s) | |
| 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) | |
| 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support | |
| 4 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x Chassis Fan connector(s) | |
| 1 x W_PUMP+ connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin EATX 12V Power connectors | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x Slow Mode switch(es) | |
| 1 x Reset button(s) | |
| 1 x Node Connector(s) | |
| 1 x LN2 Mode jumper(s) | |
| 1 x Safe Boot button | |
| 1 x ReTry button | |
| 1 x System panel connector | |
| 1 x T_Sensor Connector | |
| 1 x W_IN header | |
| 1 x W_OUT header | |
| 1 x W_FLOW header | |
| 1 x Start button | |
| 2 x Radiator Fan Headers | |
| 1 x USB 3.2 Gen 2 (up to 10Gbps) connector | |
| 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports | |
| Accessories | |
| User's manual | |
| 4 x SATA 6Gb/s cable(s) | |
| 1 x Supporting DVD | |
| 1 x ROG big sticker | |
| 2 x M.2 screw kit (short screw and mount) | |
| 1 x Wi-Fi Antenna(s) | |
| 1 x Extension Cable for RGB strips (80 cm) | |
| 1 x Extension cable for Addressable LED | |
| 1 x Panel cable | |
| 1 x ROG coaster(s) | |
| 1 x ROG Thank you card | |
| 1 x ROG SO-DIMM.2 with heatsinks | |
| 1 x 2-in-1 Rubber pad | |
| BIOS | |
| 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 | |
| Manageability | |
| WOL, PXE | |
| Operating System | |
| Windows® 10 64-bit | |
| Form Factor | |
| Mini-DTX Form Factor | |
Ficha técnica
| Chipset | AMD X570 |
| Factor | ATX |
| Socket | CPU Integrado |
