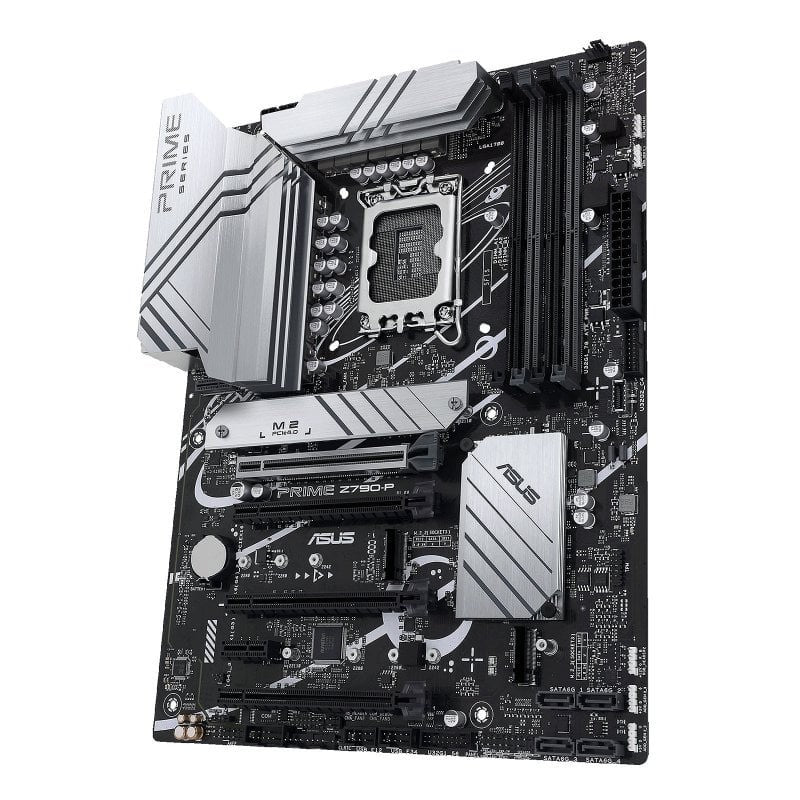

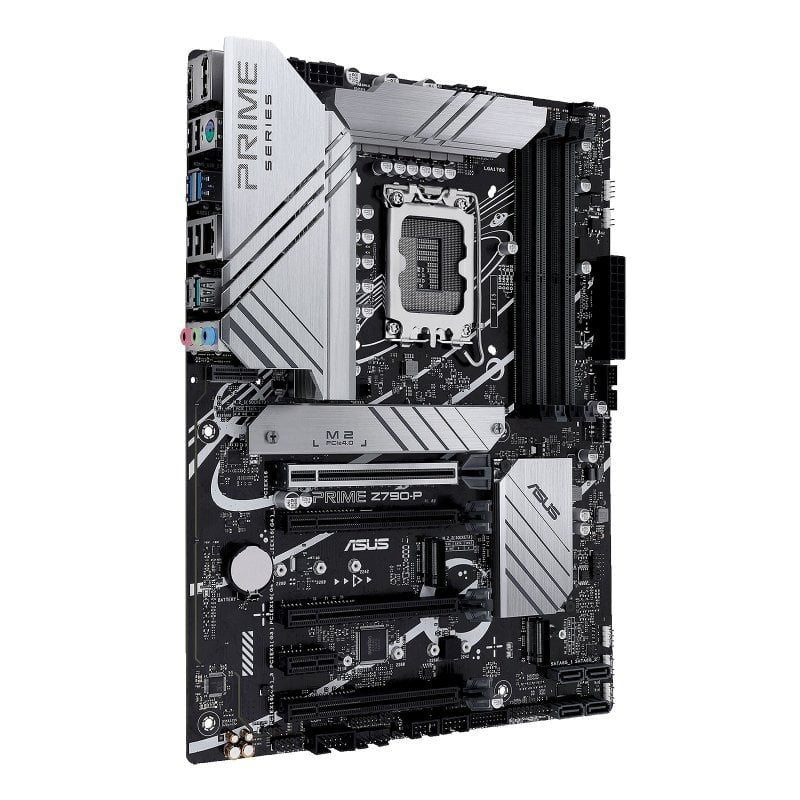

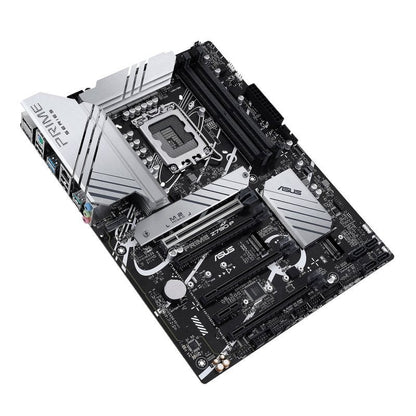

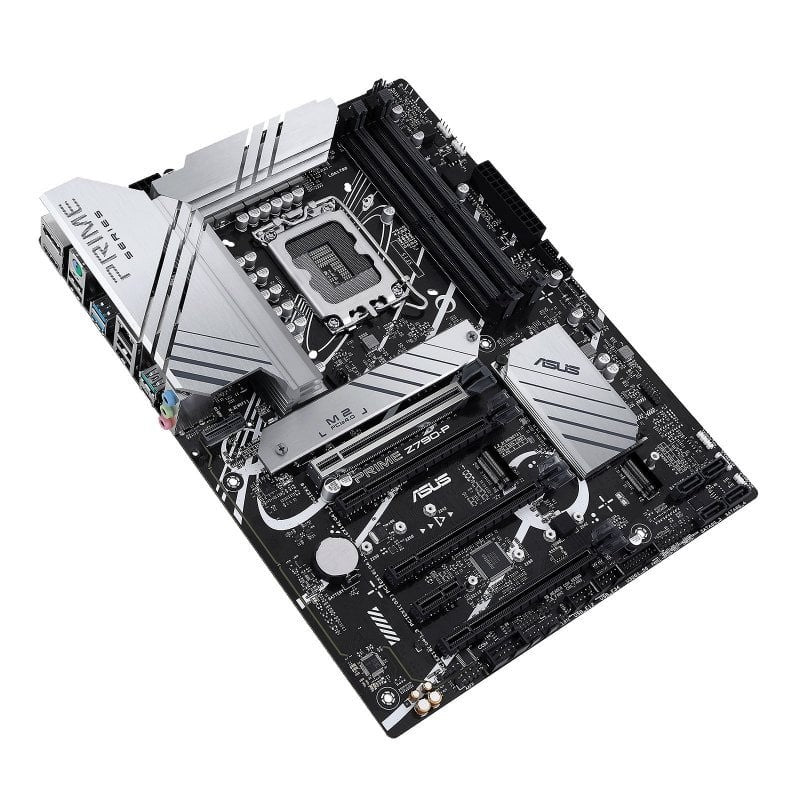

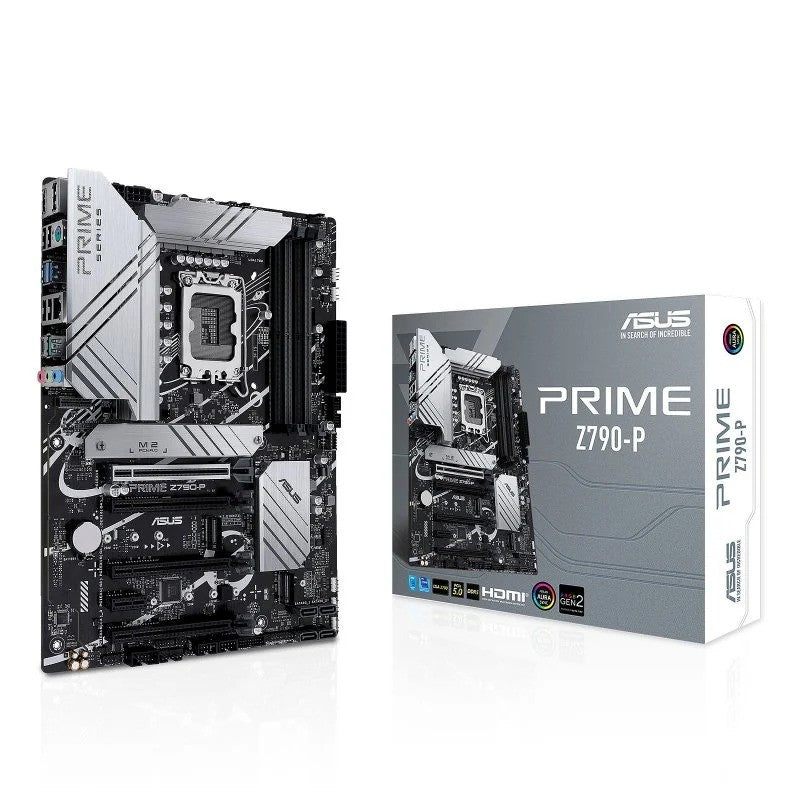

PLACA BASE ASUS Z790-P WIFI ATX X4DDR5 HDMI + DISPLAYPORT
PLACA BASE ASUS Z790-P WIFI ATX X4DDR5 HDMI + DISPLAYPORT
Precio habitual
€253,02 EUR
Precio habitual
Precio de oferta
€253,02 EUR
En stock · 1 uds.
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
ASUS Prime Z790-P, una placa madre Intel Z790 LGA 1700 ATX con PCIe® 5.0, tres ranuras M.2, 14+1 DrMOS, DDR5, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, USB frontal 3.2 Gen 2 Type-C®, compatibilidad con Thunderbolt (USB4®), Aura Sync
Descripción
Características
Zócalo Intel® LGA 1700: Listo para procesadores Intel® de 12.ª y 13.ª generación
Solución de alimentación mejorada: 14+1 DrMOS, PCB de 6 capas, conectores ProCool, estranguladores de aleación y condensadores duraderos para un suministro de energía estable
Conectividad de próxima generación: memoria DDR5, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, USB 3.2 Gen 2 Type-C® en el panel frontal, compatibilidad con encabezado Thunderbolt™ (USB4®), 3 PCIe® 4.0 M .2
Tecnología de memoria exclusiva: ASUS Enhanced Memory Profile II y ASUS OptiMem II
Refrigeración integral: disipadores de calor VRM grandes, disipador de calor M.2 flexible, disipador de calor PCH, encabezados de ventilador híbrido y Fan Xpert 4 con AI Cooling II
Especificaciones técnicas
| : | |
| CPU | |
| Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | |
| Intel® Z790 Chipset | |
| Memory | |
| 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | |
| 1 x DisplayPort** | |
| 1 x HDMI® port*** | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | |
| Intel® 13th & 12th Gen Processors* | |
| 1 x PCIe 5.0 x16 slot | |
| Intel® Z790 Chipset | |
| 3 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check the PCIe bifurcation table on the support site (https | //www.asus.com/support/FAQ/1037507/). |
| - To ensure compatibility of the device installed, please refer to https | //www.asus.com/support/ for the list of supported peripherals. |
| Storage | |
| Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* | |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| Intel® Z790 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Ethernet | |
| 1 x Realtek 2.5Gb Ethernet | |
| Wireless & Bluetooth | |
| Vertical M.2 slot only (Key E, CNVi & PCIe)* | |
| *Wi-Fi module is sold separately. | |
| USB | |
| Rear USB (Total 8 ports) | |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
| * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. | |
| Audio | |
| Realtek 7.1 Surround Sound High Definition Audio CODEC* | |
| - Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Vertical M.2 slot (Key E) | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | |
| Fan and Cooling related | |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 2 x Aura RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5pin System Panel header | |
| 1 x Thunderbolt™ (USB4®) Header | |
| Special Features | |
| ASUS 5X PROTECTION III | |
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core+ | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-Slot | |
| - Q-LED Core | |
| ASUS Thermal Solution | |
| - Flexible M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - ProCool | |
| Aura Sync | |
| - Aura RGB headers | |
| - Addressable Gen 2 headers | |
| Software Features | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| AI Suite 3 | |
| -TurboV EVO | |
| -PC Cleaner | |
| -DIGI+ VRM | |
| ASUS CPU-Z | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | |
| 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | |
| WOL by PME, PXE | |
| Accessories | |
| Cables | |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 2 x Screw packages for M.2 SSD | |
| Documentation | |
| 1 x User guide | |
| Operating System | |
| Windows® 11, Windows® 10 64-bit | |
| Form Factor | |
| ATX Form Factor | |
| 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | |
Ficha técnica
| Chipset | Intel Z790 |
| Factor | ATX |
| Socket | LGA 1700 |
