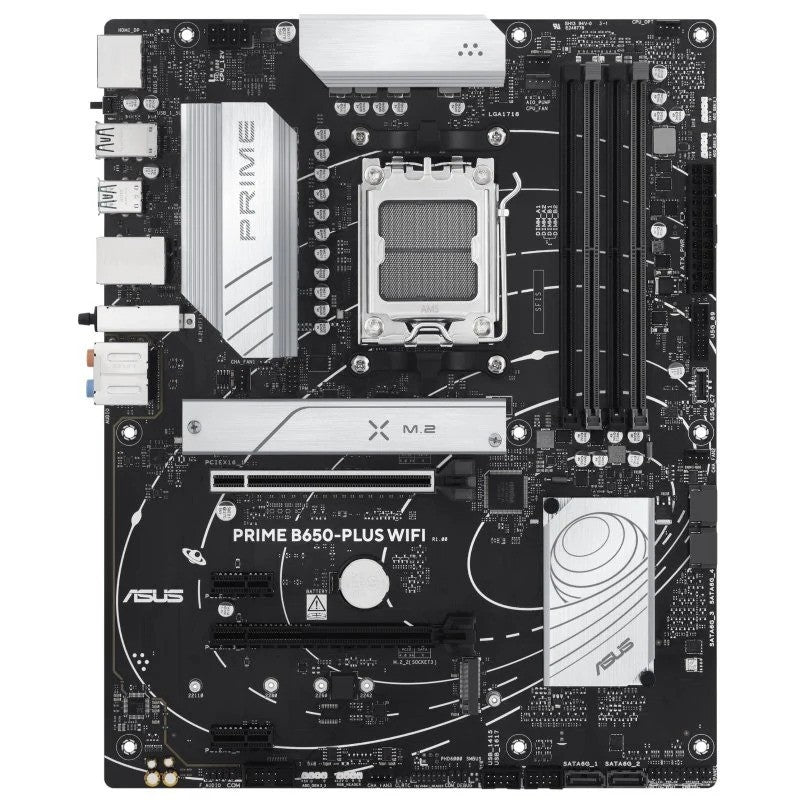

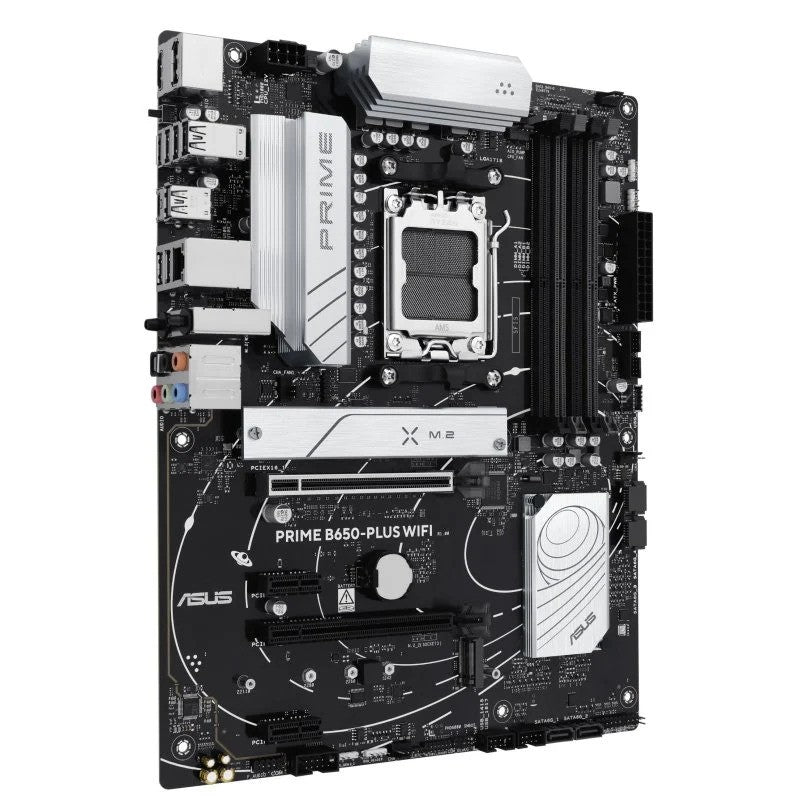

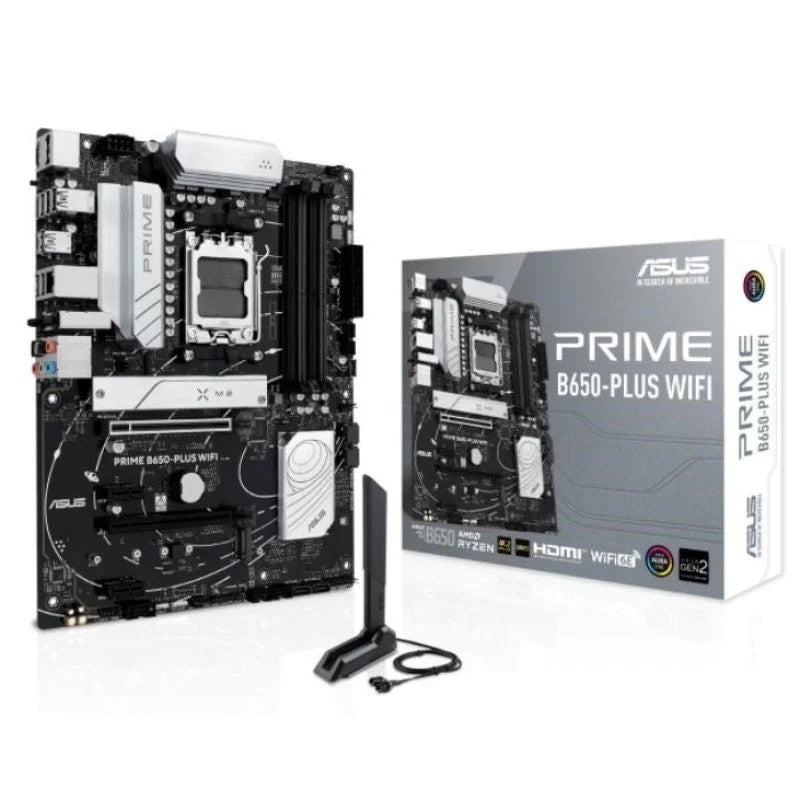

PLACA BASE ASUS PRIME B650-PLUS WIFI ATX AM5 4XDDR5 HDMI + DP
PLACA BASE ASUS PRIME B650-PLUS WIFI ATX AM5 4XDDR5 HDMI + DP
No se pudo cargar la disponibilidad de retiro
Las placas base ASUS de la serie Prime están diseñadas por expertos para liberar todo el potencial de los procesadores AMD Ryzen de las series 9000, 8000 y 7000. Con un diseño de potencia robusto, soluciones de refrigeración completas y opciones de ajuste inteligente, PRIME B650-PLUS WIFI proporciona a los usuarios y a los constructores de PC DIY una serie de optimizaciones de rendimiento mediante funciones intuitivas de software y firmware. Esta plataforma ofrece la potencia y la conectividad que exigen las aplicaciones informáticas avanzadas de IA.
Descripción
Características
Socket AMD AM5: Preparado para procesadores AMD Ryzen™ series 9000, 8000 y 7000
Conectividad ultrarrápida: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, USB frontal 5Gbps Type-C®, Thunderbolt™ Compatibilidad con 4 conectores
ASUS OptiMem II: Enrutamiento cuidadoso de pistas y vías, además de optimizaciones de la capa de tierra para preservar la integridad de la señal para un mejor overclocking de la memoria
Refrigeración integral: disipador de calor VRM, disipador de calor M.2, disipador de calor PCH, conectores de ventilador híbridos y Fan Xpert 2+
Iluminación Aura Sync RGB: Conectores Gen 2 direccionables integrados y conector Aura RGB para tiras LED RGB, que se sincronizan fácilmente con hardware compatible con Aura Sync
Especificaciones técnicas
| ASUS PRIME B650-PLUS WIFI | |
| Procesador | |
| AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* | |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD B650 Chipset |
| Memoria | |
| 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
| Gráficos | |
| 1 x DisplayPort** | |
| 1 x HDMITM port*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansión | |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 4.0 x1 slots | |
| * Please check the PCIe bifurcation table on the support site (https | //www.asus.com/support/FAQ/1037507/). |
| ** Specifications vary by CPU types. | |
| Almacenamiento | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| ** Specifications vary by CPU types. | |
| Ethernet | |
| 1 x Realtek 2.5Gb Ethernet | |
| Inalámbrico | |
| Wi-Fi 6E | |
| 2x2 Wi-Fi 6E (802.11ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth® v5.3** | |
| * Wi-Fi 6GHz frequency band regulatory may vary between countries. | |
| ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | |
| Rear USB (Total 8 ports) | |
| 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 5Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | |
| Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |

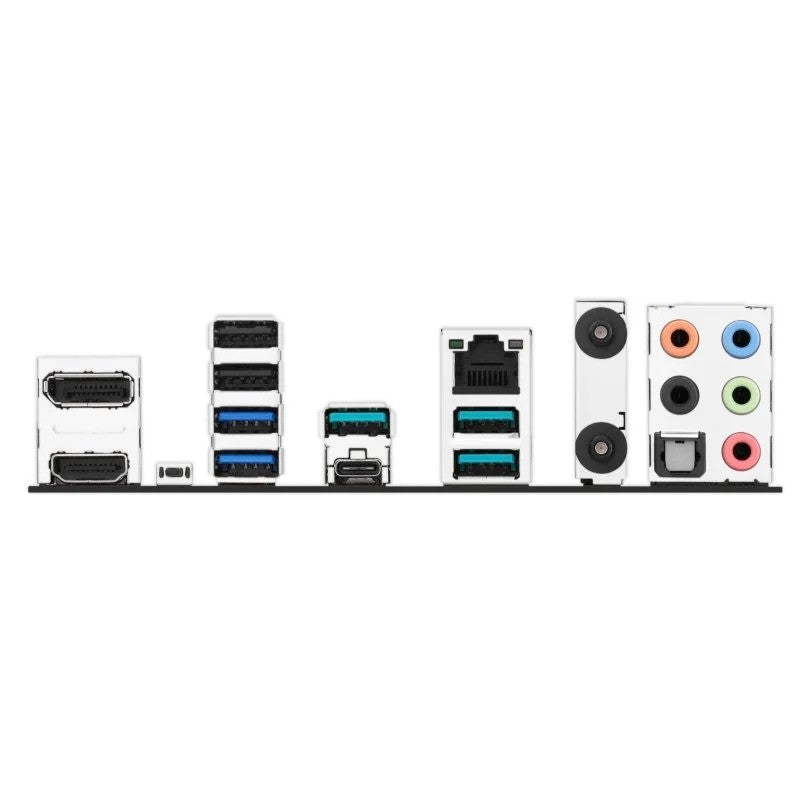

| Puertos traseros | |
| 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| Conectores internos | |
| Fan and Cooling related | |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 5Gbps connector (supports USB Type-C® ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt™ (USB4®) header | |
| Especiales | |
| ASUS 5X PROTECTION III | |
| DIGI+ VRM | |
| LANGuard | |
| Overvoltage Protection | |
| Safeslot Core+ | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| Q-DIMM | |
| Q-LED Core | |
| Q-Slot | |
| ASUS Thermal Solution | |
| Flexible M.2 heatsink | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| ProCool | |
| Aura Sync | |
| Aura RGB header | |
| Addressable Gen 2 headers | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Formato | ATX |
Ficha técnica
| Chipset | AMD B650 |
| Factor | ATX |
| Socket | AM5 |
