Brand: Anima

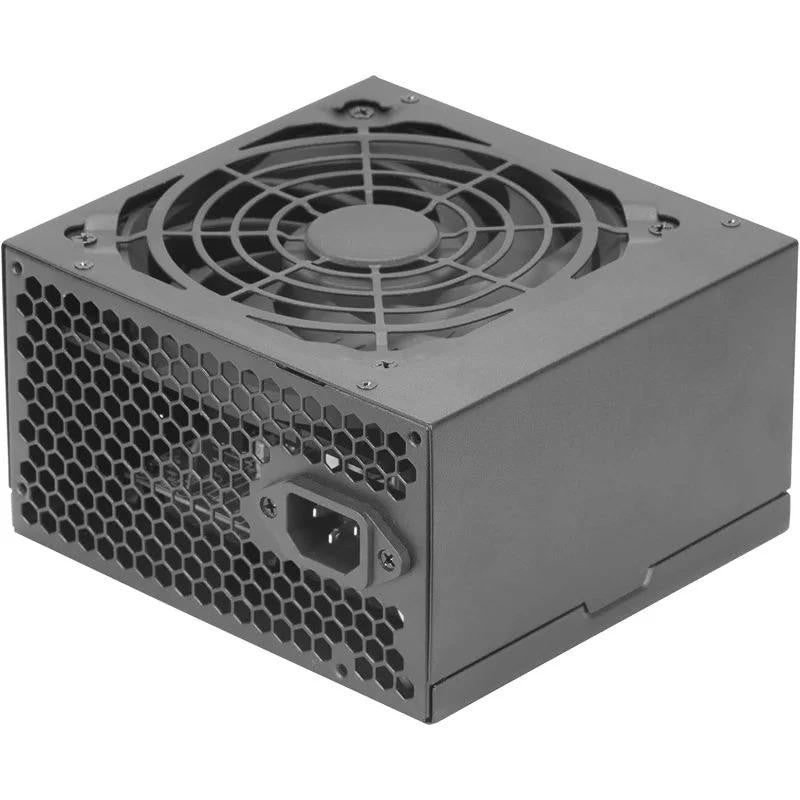

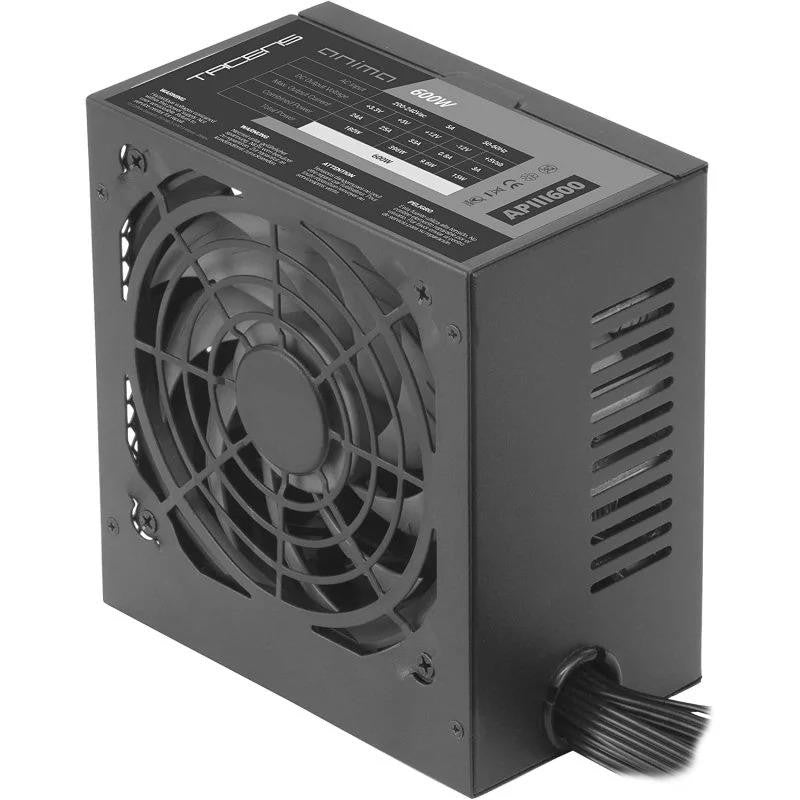

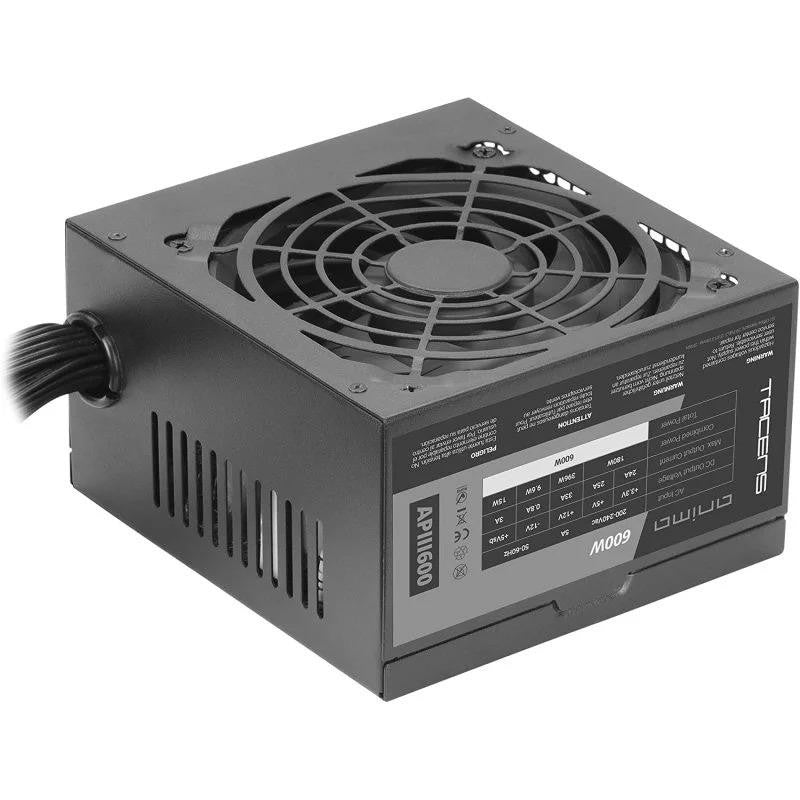

ANIMA 600W BLACK POWER SUPPLY
ANIMA 600W BLACK POWER SUPPLY
SKU:APIII600
Couldn't load pickup availability
PC ATX 600W APIII600 POWER SUPPLY. The ATX APIII600 power supply from Tacens Anima achieves an 85% Bronze efficiency level thanks to the latest SMD manufacturing technology and its high quality and safety manufacturing.
Description
Features:
85% BRONZE LEVEL EFFICIENCY. SMD TECHNOLOGY. The APIII600 achieves an 85% Bronze efficiency level thanks to the latest SMD manufacturing technology with high-quality and reliable components, its 12V single-rail technology, and its double-layer carbon fiber PCB board.
TOTAL SAFETY. EUROPEAN QUALITY. Maximum electrical protection thanks to its complete OPP/OVP/UVP/SCP electronic protection systems. Designed and developed in Europe, the APIII600 power supply has been manufactured in accordance with the directives and standards required by the European Union, guaranteeing perfect operation.
TOTAL SILENCE. Thanks to its ultra-silent 120mm Tacens fan with an anti-vibration system and its unrestricted airflow grille, you will enjoy inaudible operation at 14dB.

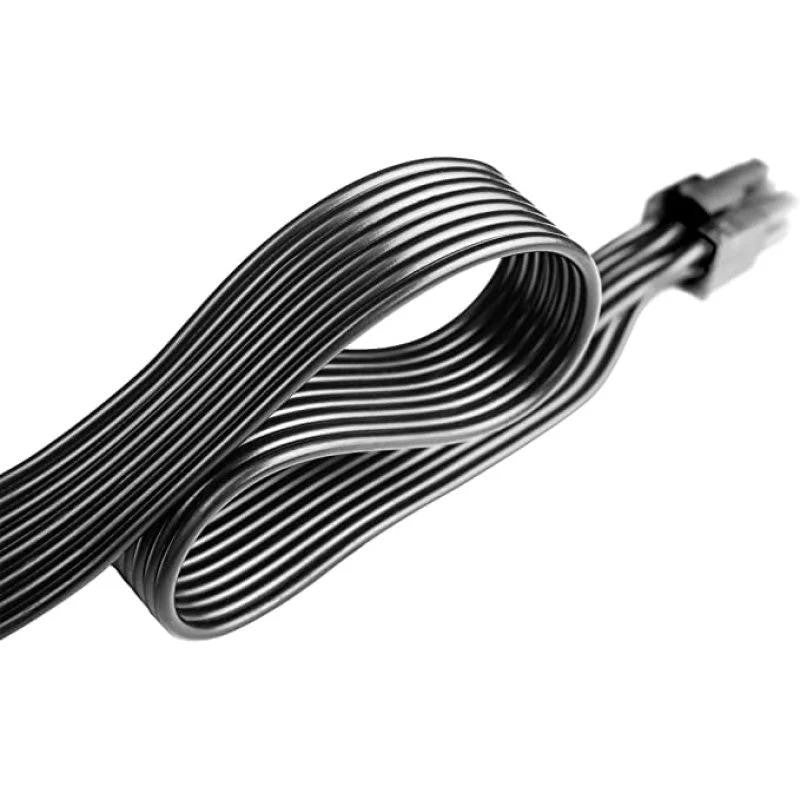

FULL BLACK CABLES AND CASING. The APIII600 features a completely black finish with long, black, flat, high-quality cables designed to offer maximum compatibility and easy installation, and includes 1x ATX MB 24 PIN, 1x EPS +12V 4+4 PIN, 3x SATA, 2x Molex 4 PIN connectors; *This power supply does not include a PCIe connector for graphics cards; Verify if your graphics card needs it; Do not modify or install adapters on the power supply cables.
PACKAGING WITH HIGH EPE PROTECTION. To ensure that the APIII600 power supply arrives in perfect condition, it is fully protected by special packaging with a total shock absorption system.
Technical specifications
| APIII600 | |
| Ports & Interfaces | |
| Maximum input current | 5A |
| Input voltage | 200-240V 50/60Hz |
| Output Voltage/Current | +3.3V - 24A / +5V - 25A / +12V - 33A / -12V - 0.8A / +5VSB - 3A |
| PFC Power Factor Correction type | Passive |
| Connectors | 1x ATX MB 24 PIN / 1x EPS +12V 4+4 PIN / 3x SATA / 2x Molex 4 PINWeight and dimensions |
| Width | 145 mm |
| Depth | 150 mm |
| Height | 85 mm |
| Weight | 850 gCooling |
| Number of fans | 1 |
| Fan diameter | 12 cmDesign |
| Product color | Black |
| Cabling | Extra long flat cables |
| Extras | SMD manufacturing processPerformance |
| Use with | PC |
| Power Supply Unit (PSU) form factor | ATX |
| Power | 600W |
| Noise level | 14dB |
| Certifications | ATX12V, Haswell Ready, CE, ROHS |
| Protections | OPP, OVP, UVP, SCP |
Data sheet
| Power | 600 |
