Brand: Anima

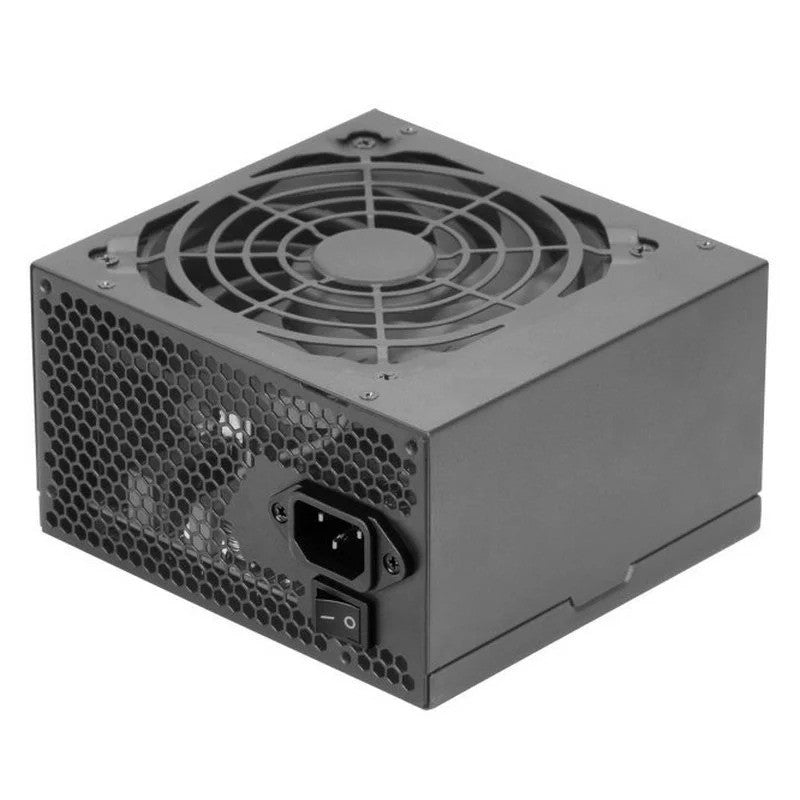

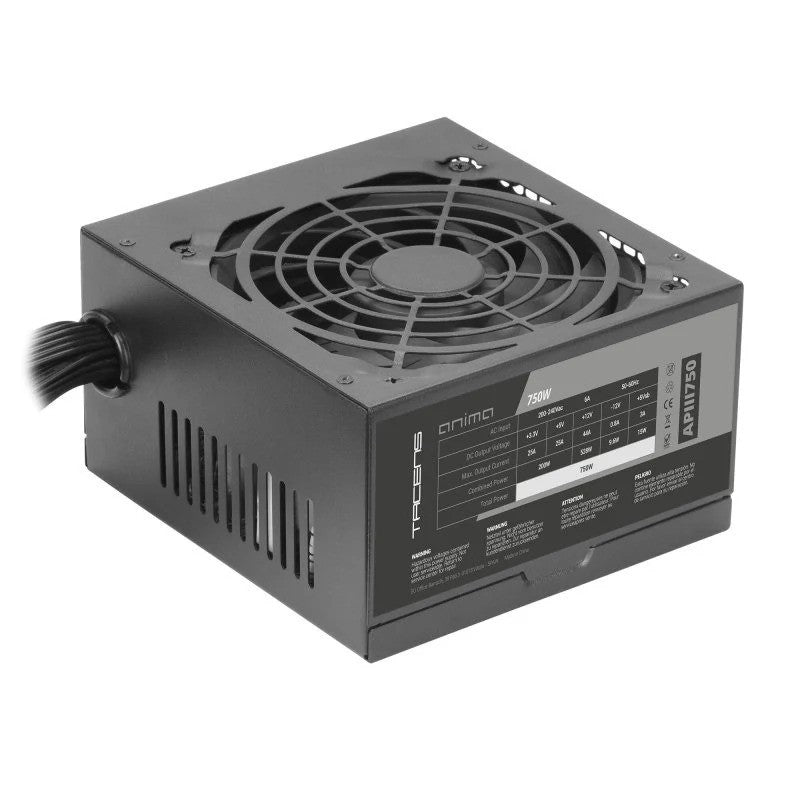

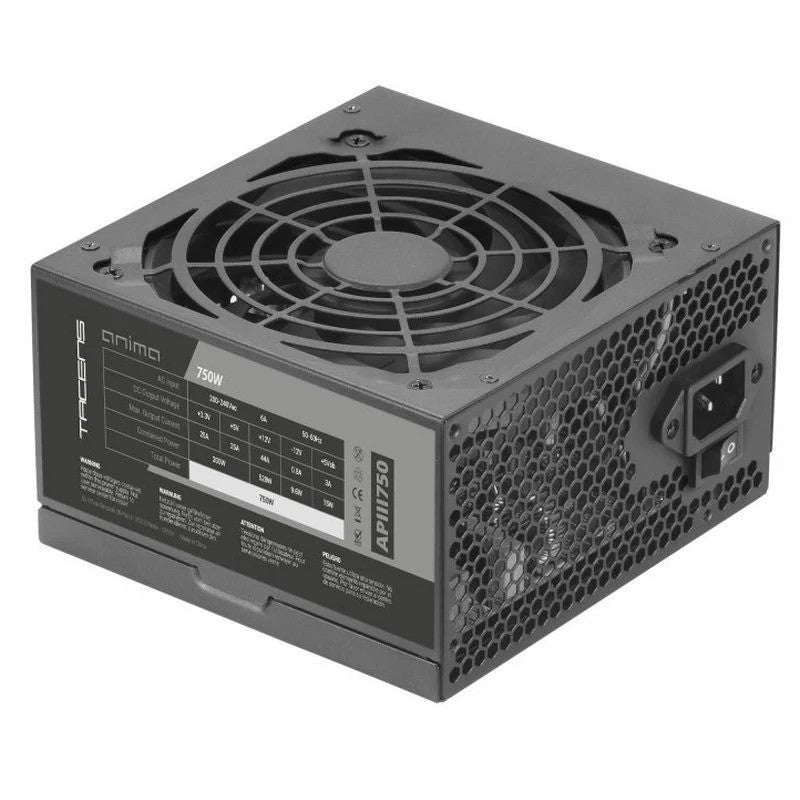

ANIMA 750W Black Power Supply
ANIMA 750W Black Power Supply
SKU:APIII750
Couldn't load pickup availability
ATX 750W APIII750 POWER SUPPLY. The Tacens Anima APIII750 ATX power supply, with a power output of 750W, achieves an 85% Bronze efficiency level thanks to the latest SMD manufacturing technology with high-quality and reliable components, its single 12V rail technology, and its double-layer carbon fiber PCB.
Description
Features:
85% BRONZE LEVEL EFFICIENCY. The APIII750 power supply features SMD manufacturing technology with 85% Bronze efficiency, high-quality and reliable components, single 12V rail technology, and a double-layer carbon fiber PCB.
EUROPEAN QUALITY. Designed and developed in Europe and manufactured according to the directives and standards required by the European Union, the APIII750 power supply guarantees maximum electrical safety thanks to its OPP/OVP/UVP/SCP electronic protection systems.

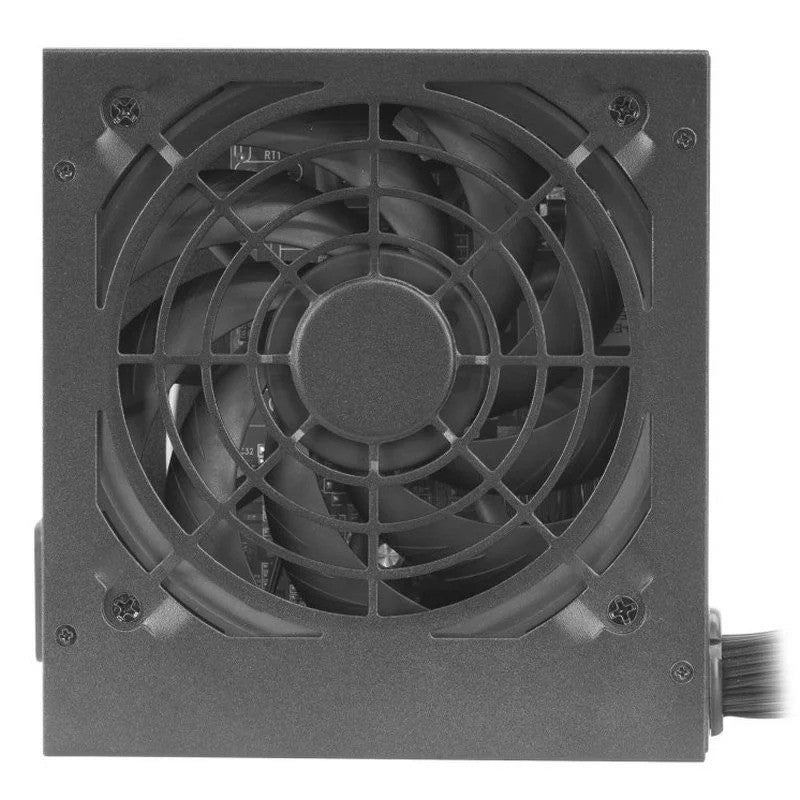

TOTAL SILENCE. The APIII750 power supply incorporates a 12cm ultra-silent Tacens fan with an anti-vibration system and a grille with no airflow restriction, operating at an inaudible 14dB.
FULL BLACK CABLES AND CASING. Completely black finish with long, black, flat, high-quality cables designed to offer maximum compatibility and easy installation: 1×20+4pin, 1x12V 4+4pin, 3xSATA, 2x MOLEX, 1x PCIe 6+2pin.
ADVANCED DC-DC TECHNOLOGY. DC-DC conversion technology, with voltage regulation, optimizes efficiency and ensures exceptional stability and adaptability; even with load variations, the ATX APIII750 power supply maintains optimal equipment performance in any situation.
Technical specifications
| APIII750 | |
| Ports & Interfaces | |
| Maximum input current | 6A |
| Input voltage | 200-240V 50/60Hz |
| Output voltage/current | +3.3V - 25A / +5V - 25A / +12V - 44A / -12V - 0.8A / +5VSB - 3A |
| PFC (Power Factor Correction) type | Passive |
| Connectors | 1x ATX MB 20+4 PIN / 1x EPS +12V 4+4 PIN / 1x PCIe 6+2 PIN / 3x SATA / 2x Molex 4 PIN |
| Weight and dimensions | |
| Width | 145mm |
| Depth | 150mm |
| Height | 85mm |
| Weight | 850g |
| Cooling | |
| Number of fans | 1 |
| Fan diameter | 120mm |
| Design | |
| Product color | Black |
| Cabling Type | Fixed |
| Cabling | Extra long flat cables |
| Extras | SMD and DC-DC |
| Performance | |
| Use with | PC |
| Power Supply Unit (PSU) form factor | ATX |
| Power | 750W |
| Efficiency | 85% |
| Noise level | 14dB |
| Certifications | ATX12V, CE, ROHS |
| Protections | OPP, OVP, UVP, SCP |
Data sheet
| Power | 750 |
