Brand: Tacens

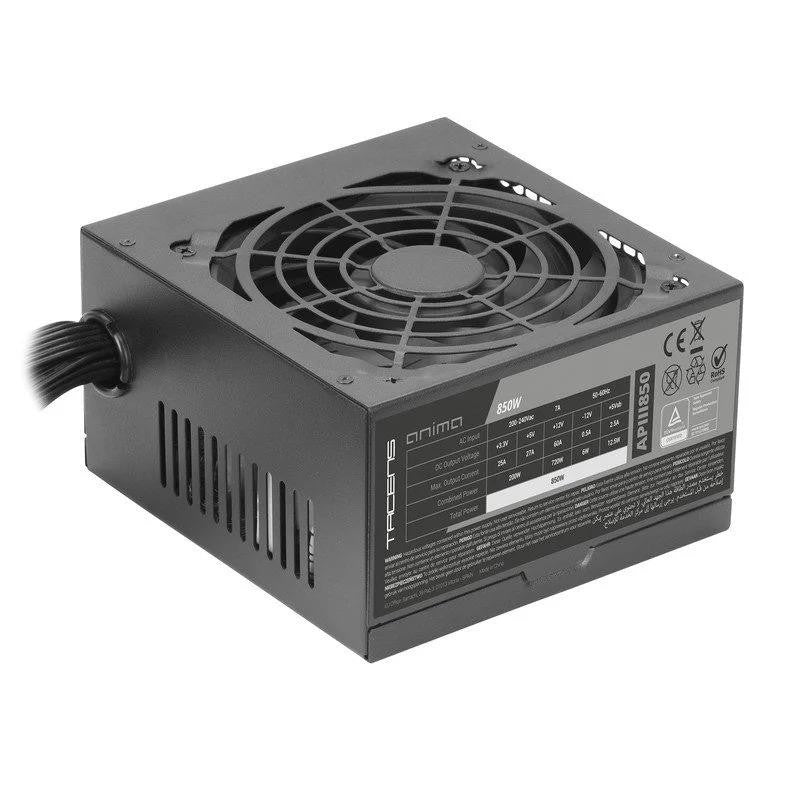

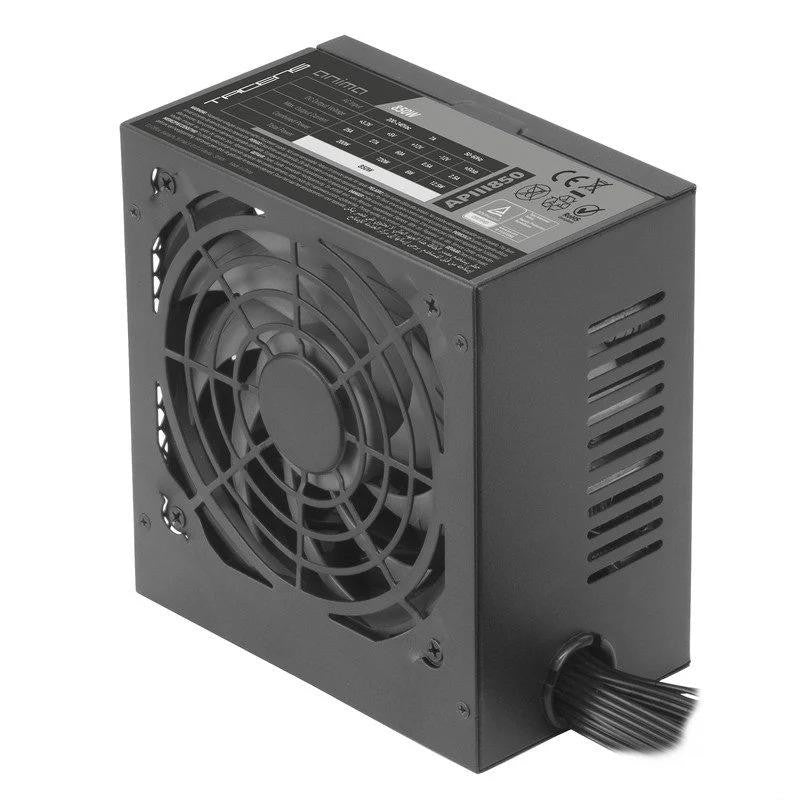

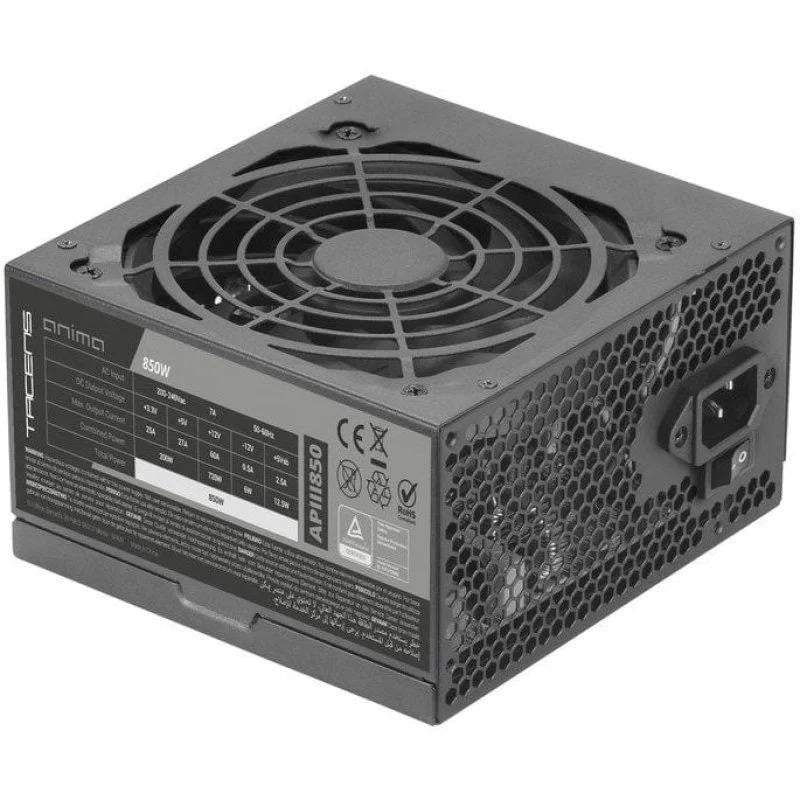

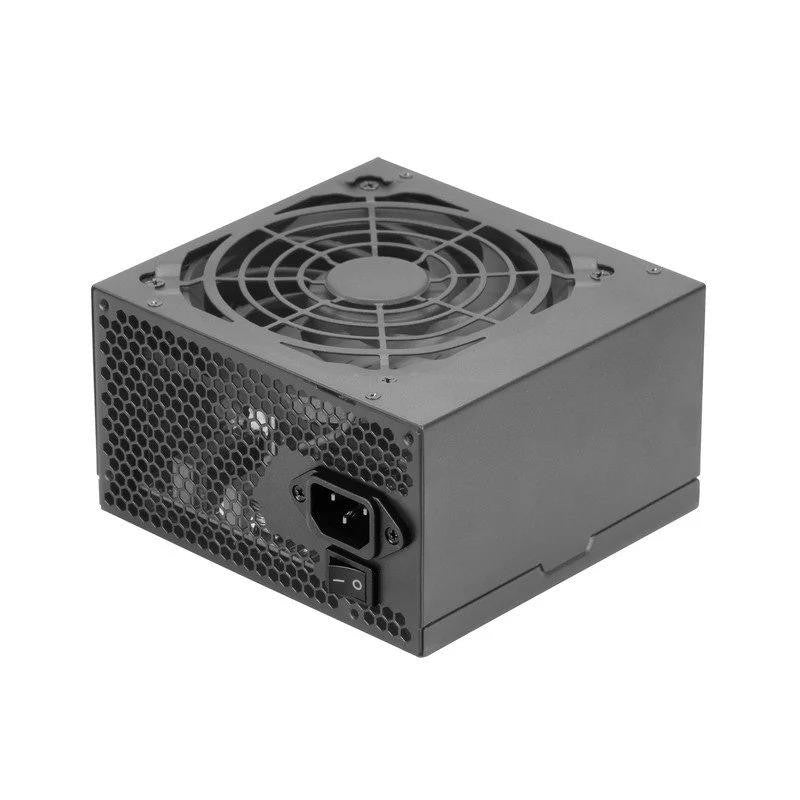

TACENS ANIMA 850W ATX POWER SUPPLY
TACENS ANIMA 850W ATX POWER SUPPLY
SKU:APIII850
Couldn't load pickup availability
ATX 850W APIII850 POWER SUPPLY The Tacens Anima ATX APIII850 power supply, with a power of 850W, achieves an 85% Bronze efficiency level thanks to the latest SMD manufacturing technology with high-quality and reliable components, its 12V single-rail technology, and its double-layer carbon fiber PCB board.
Description
Features:
85% BRONZE LEVEL EFFICIENCY. SMD TECHNOLOGY. The APIII850 power supply, with 850W and manufactured with high-quality and reliable components using the latest SMD manufacturing technology, 12V single-rail technology, and double-layer fiberglass PCB components, achieves an 85% Bronze efficiency level.
TOTAL SECURITY. EUROPEAN QUALITY. Maximum electrical protection thanks to its complete system of electronic protection OPP/OVP/UVP/SCP. Designed and developed in Europe, the APIII850 power supply has been manufactured according to the directives and standards required by the European Union, guaranteeing perfect operation and quality certified by the renowned quality and safety laboratory TÜV Rheinland.
ADVANCED DC-DC CONVERSION TECHNOLOGY. DC-DC conversion technology optimizes efficiency and ensures exceptional stability and adaptability, with voltage regulation to protect the most sensitive components. Even with load variations, this ATX power supply maintains optimal performance, guaranteeing equipment stability in any situation.

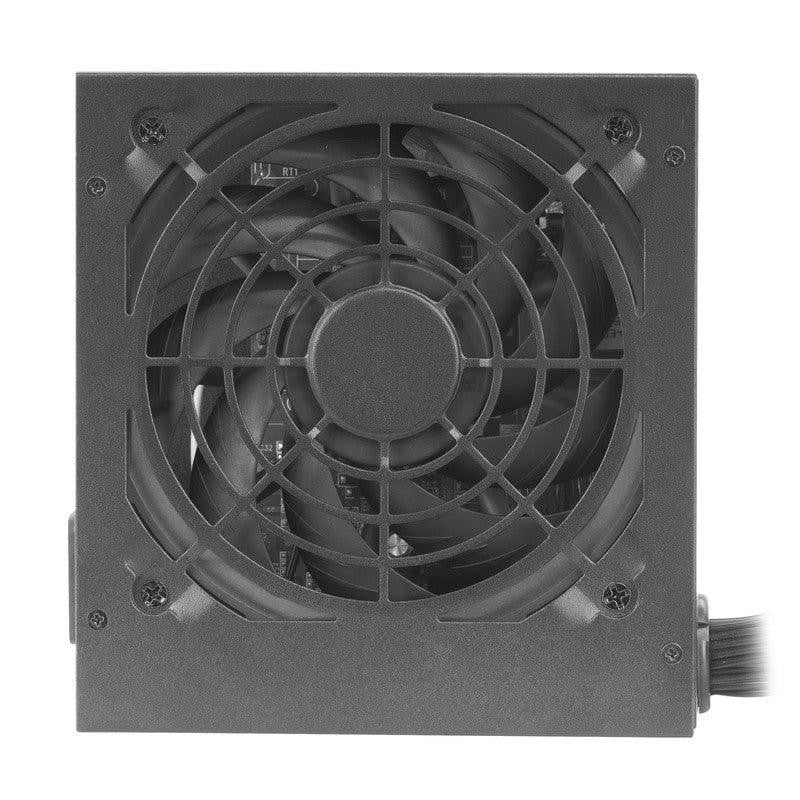

TOTAL SILENCE. The power supply integrates an ultra-silent 120mm fan with intelligent speed control and an anti-vibration system that guarantees effective airflow and silent operation.
FULL BLACK CABLES AND CASING. The APIII850 is manufactured with a completely black finish with long, black, flat, high-quality cables designed to offer maximum compatibility and convenient installation: 1×24pin, 1x12V 4+4pin, 4xSATA, 2xMOLEX, 2x PCIE 6+2PIN.
Technical specifications
| APIII850 | |
| Ports and Interfaces | |
| Maximum input current | 7A |
| Input voltage | 200-240V 50/60Hz |
| Output Voltage/Current | +3.3V - 25A / +5V - 27A / +12V - 60A / -12V - 0.5A / +5VSB - 2.5A |
| PFC type power factor correction | Passive |
| Connectors | 1x ATX MB 24 PIN / 1x EPS +12V 4+4 PIN / 2x PCIe 6+2 PIN / 4x SATA / 2x Molex 4 PINWeight and dimensions |
| Width | 145mm |
| Depth | 150mm |
| Height | 85mm |
| Weight | 1350gCooling |
| Number of fans | 1 |
| Fan diameter | 120mmDesign |
| Product color | Black |
| Cabling type | Fixed |
| Wiring | Extra long flat cables |
| Extras | SMD manufacturing processPerformance |
| Use with | PC |
| Power supply unit (PSU) form factor | ATX |
| Power | 850W |
| Efficiency | 85% |
| Noise level | 14dB |
| Certifications | ATX12V, CE, ROHS, TUV |
| Protections | OPP, OVP, UVP, SCP |
Technical sheet
| Power | 850 |
