| Image Sensor |
960×640 CMOS |
| Scan Mode |
Manual button scan |
| Reading Capacity: |
| 1D |
EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 39, Code 93, Code 128, Codebar, Industrial 2 of 5, Interleave 2 of 5, MSI, GSI Databar (RSS14) |
| 2D |
PDF417, MicroQR, DataMatrix, QR Code, HanXin, Aztec |
| System Compatibility |
Linux, Android, iOS, Windows XP/7/8/10Depth of Field (Reading Distance) |
| Code 39 (5 mil) |
6 cm - 11 cm |
| UPC (13 mil) |
6 cm - 21 cm |
| EAN-13 (15.6 mil) |
7 cm - 12 cm |
| 1D Display |
9 cm - 26 cm |
| 2D Display |
9 cm - 60 cmIllumination and Precision |
| Light Source |
Infrared LED (Wavelength: 675nm ±3nm) |
| Keyboard Support |
Multi-language |
| Decoding Accuracy |
Code 39 (6.6 mil) |
| Compatible Codes |
1D and 2D on paper, film, or screen |
| Scan Speed |
1500 times per second |
| Symbol Contrast |
20%Functions and Configuration |
| Secondary Development |
Not supported |
| Barcode Output Editing |
Supports prefixes and suffixes |
| Scan Angle |
Horizontal: 72º / Vertical: 82ºUser Interaction |
| Light Indicators: |
| Red |
Power on |
| Green |
Standby |
| Blue |
Connection |
| Buzzer |
Start-up and decoding indications |
| Buttons |
Power on and scan |
| Software Update |
Supports client-side updatesEnvironmental Parameters |

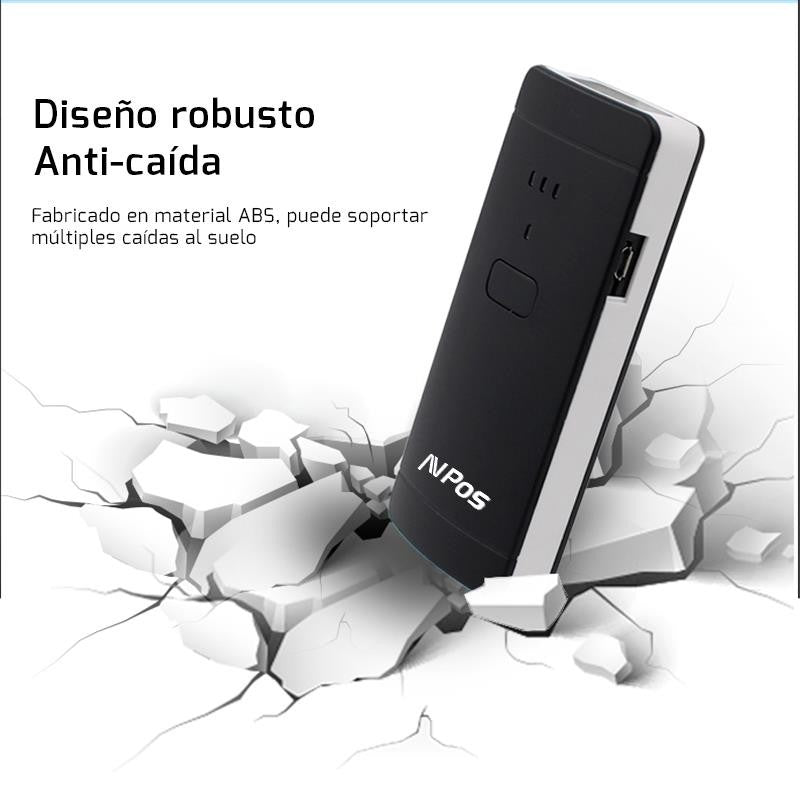

| Drop Resistance |
Withstands 1.5 m drops onto concrete (5 times) |
| Environmental Sealing |
IP54 |
| Working/Storage Temperature |
-20°C to 55°C / -20°C to 60°C |
| Working/Storage Humidity |
5-95% (non-condensing) |
| Supported Ambient Light |
0 – 120,000 LUXPhysical Parameters |
| Net Weight |
98 g |

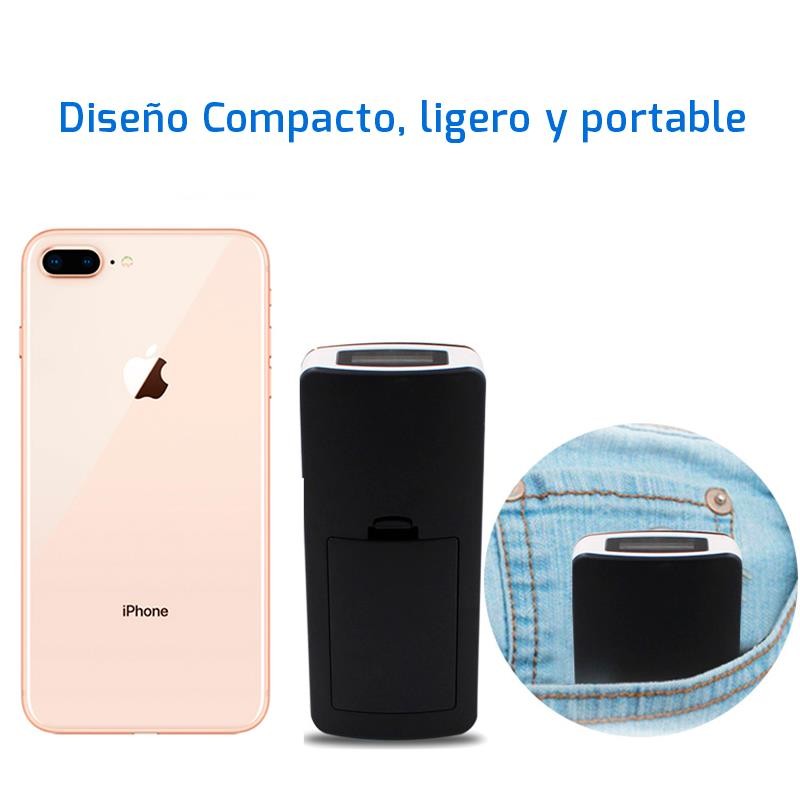

| Dimensions (L×W×H) |
50.4 mm × 24.8 mm × 118.4 mm |
| Interface |
USB, Bluetooth |

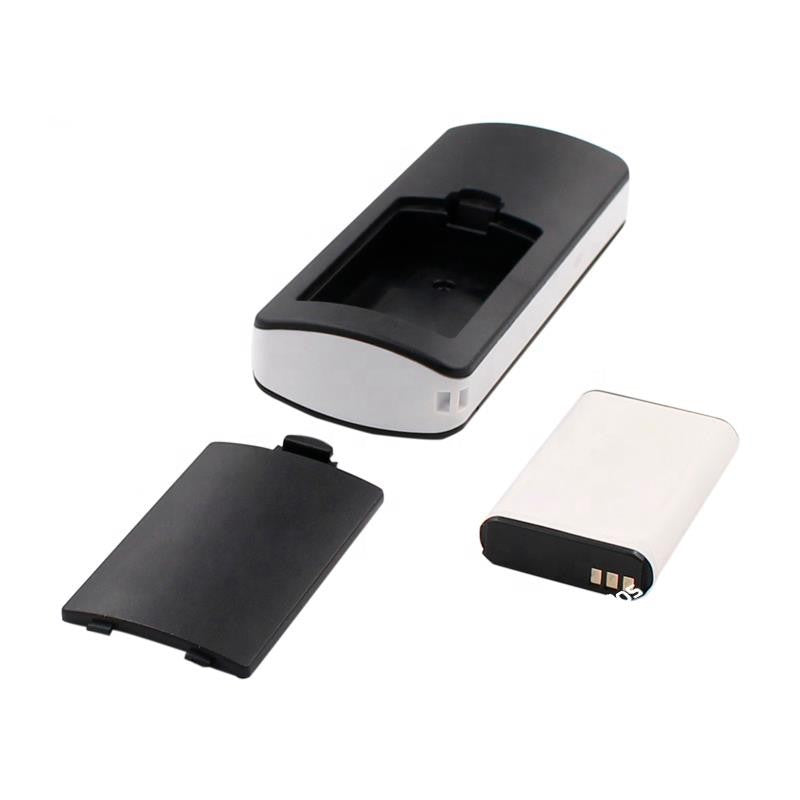

| Battery |
1600 mAh |
| Maximum Storage |
131,039 barcodes |
