TP-LINK CPE510 OUTDOOR HIGH-POWER 5GHZ WIRELESS ACCESS POINT
TP-LINK CPE510 OUTDOOR HIGH-POWER 5GHZ WIRELESS ACCESS POINT
SKU:CPE510
Couldn't load pickup availability
The TP-Link CPE 510 is a high-capacity device designed for long-range wireless communications. It features a 13 dBi directional MIMO antenna, adjustable up to 26 dBm. Its TDMA Pharos MAXtream technology optimizes speed and latency in PTMP applications, while the Pharos Control management system facilitates remote administration. Compatible with various operating modes and equipped with advanced protection, it is ideal for outdoor use, supporting extreme temperatures and adverse environmental conditions.
Description
Features
Built-in 13dBi 2x2 Dual-polarized Directional MIMO Antenna
Adjustable transmission power from 0 to 26dBm/200mW
System-level optimizations for more than 15km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in terms of throughput, capacity and latency, ideal for PTMP applications
Centralized Management System – Pharos Control
Operation Modes: AP / Client / AP Router / AP Client Router (WISP)
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows for device reset remotely
Technical specifications
| TP-Link CPE 510 | |
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface: | |

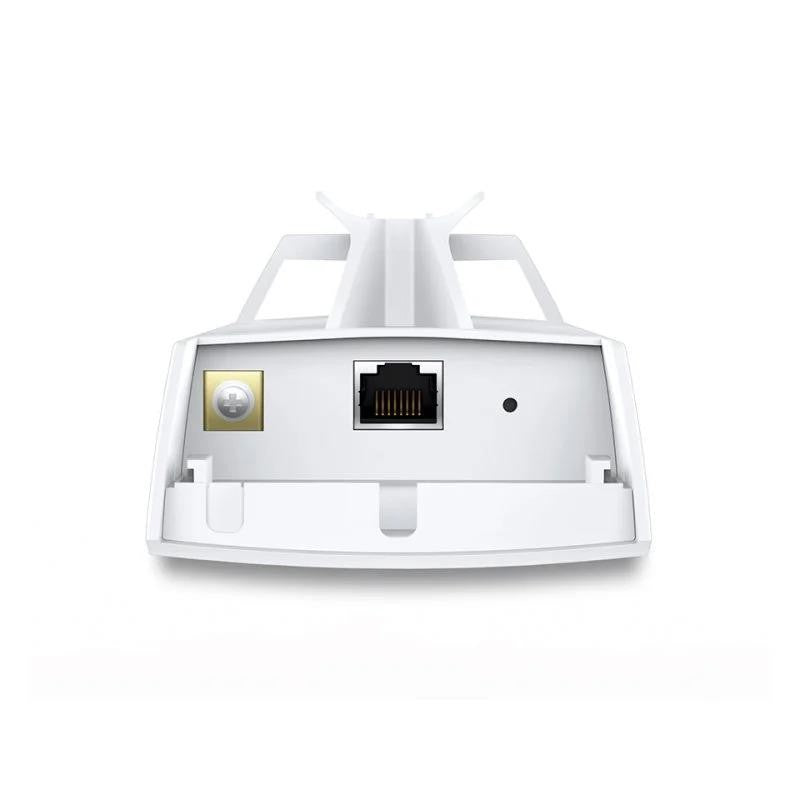

| 1 Shielded 10/100Mbps Ethernet Port (LAN0, Passive PoE in) | |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive PoE Adapter via LAN0 (+4,5pins; -7,8pins) |
| Voltage Range | 16-27VDC |
| Power Consumption | Max 9.8 W |
| Note | Power supplied by Passive PoE Adapter varies according to cable length. |
| Dimensions | 85.8×43.9×29.7 mm |
| Antenna Type | Built-in 13dBi 2x2 Dual-polarized Directional Antenna |
| Beam Width | 45° (H-Plane) / 45° (E-Plane) |
| Note | For more details, please refer to datasheet. |
| Protection: | |
| 15KV ESD Protection | |
| 6000V Lightning Protection | |
| Enclosure: | |
| Outdoor ASA stabilized plastic material | |
| IPX5 Water Protection | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speed: | |
| Up to 300Mbps (40MHz, Dynamic) | |
| Up to 144.4Mbps (20MHz, Dynamic) | |
| Up to 72.2Mbps (10MHz, Dynamic) | |
| Up to 36.1Mbps (5MHz, Dynamic) | |
| Frequency | 5.15~5.85GHz |
| Note | Operating frequency may vary depending on country or region limitations. |
| Transmission Power | Adjustable from 0 to 26 dBm/200 mW |
| Note | Maximum power may vary depending on channel and country/region limitations. |
| SOFTWARE FEATURES | |
| Wireless Configurations: | |
| Pharos MAXtream TDMA Technology | |
| 802.11a/n Modes | |
| Selectable Channel Width | 5/10/20/40MHz |
| Automatic Channel Selection | |
| Transmission Power Control | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enabled/Disabled | |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN tagging (AP mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filtering | |
| Advanced Wireless Options: | |
| Beacon Interval /RTS Threshold/Fragmentation Threshold/ DTIM Interval/ AP Isolation/Short GI/Wi-Fi Multimedia | |
| Management: | |
| Discovery and Remote Management via Pharos Control application | |
| HTTP/HTTPS Web-based Management | |
| System Log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DNS | |
| SSH Server | |
| System Tools: | |
| Wireless Signal Quality Indicators | Signal Strength / Noise / Transmit CCQ / CPU / Memory |
| Monitoring | Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| System-Level Optimizations: | |
| Optimized IGMP Snooping / Proxy for multicast applications | |
| Hardware watch dog | |
| PoE ADAPTER FEATURES | |
| Dimensions (WDH) | 1105733.5 mm |
| Interfaces: | |
| 1 AC Jack with Earth Ground | |
| 1 Shielded 10/100Mbps Ethernet Port (Power + Data) | |
| 1 Shielded 10/100Mbps Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Status LEDs | Power Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max (+4, 5 pins; -7, 8 pins; Supports up to 60m Power over Ethernet) |
| Efficiency | >80% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certifications | CE, FCC, RoHS, IPX5 |
| Package Contents: | |
| Outdoor Wireless CPE | |
| 24V 0.5A Passive PoE Adapter | |
| Mounting Straps | |
| AC Power Cord | |
| Installation Guide | |
| System Requirements: | |
| Microsoft Windows 98SE, NT, 2000, XP, Vista?, Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | |
| Note | We recommend using Google Chrome, Safari or Firefox for a better experience. Internet Explorer is not recommended. |
Data sheet
| Function | Access Point |
