Brand: D-Link

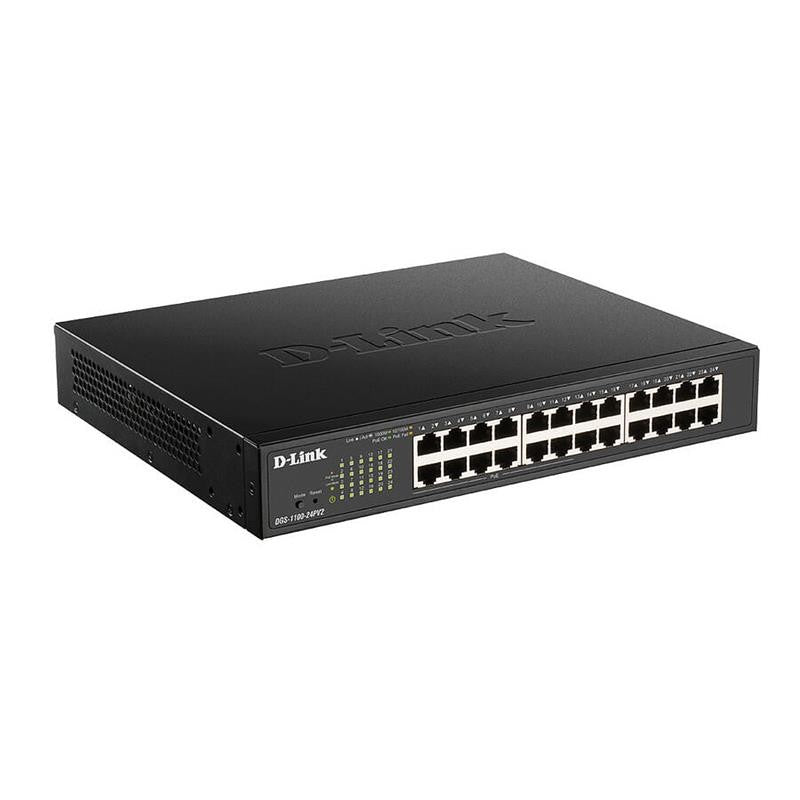

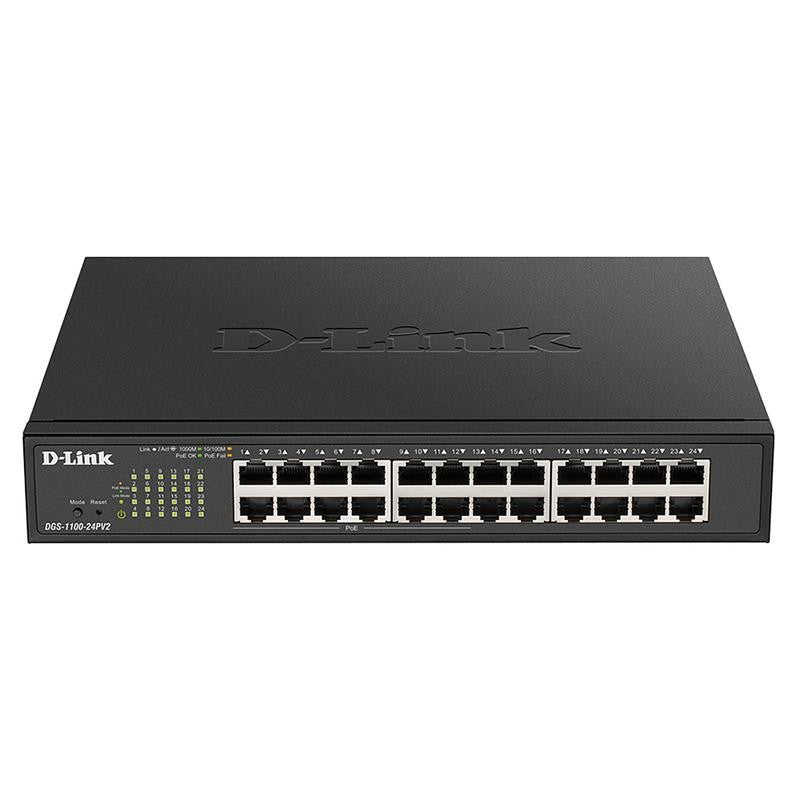

D-LINK GIGABIT 24-PORT SWITCH + POE DGS-1100-24PV2/E
D-LINK GIGABIT 24-PORT SWITCH + POE DGS-1100-24PV2/E
SKU:DGS-1100-24PV2/E
Couldn't load pickup availability
The D-Link DGS-1100-24PV2/E is an efficient and affordable switch for small businesses. It offers simple network management via a user-friendly and easily accessible web interface. It is equipped with 24 Gigabit ports, 12 of which are PoE+ (maximum PoE budget of 100W).
Description
A simple and efficient switch that is easy to manage. The D-Link DGS-1100-24PV2/E is an efficient and affordable switch for small businesses, offering simple network management via a user-friendly and easily accessible web interface. Equipped with 24 Gigabit ports, including 12 PoE+ (maximum 100W PoE budget), this desktop switch is easy to deploy and manage.
Intelligent Web Interface
The web-based user interface of the DGS-1100 provides a simple way to manage Layer 2 functions such as VLANs, Spanning Tree Protocol (STP), and Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart Series is a versatile solution for environments requiring easy-to-deploy and configure solutions without added complexity.
Easy Deployment and Management
D-Link's free Network Assistant (DNA) displays all connected devices and speeds up initial configuration. The free D-View 7 Network Management System comes with a 25-node and 2-probe license and full access to management tools. Optional upgrade licenses allow you to expand your network and analytics.
Easy Troubleshooting
The DGS-1100 series includes loopback detection and cable diagnostics features to help network administrators quickly and easily detect and resolve network problems. Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. Cable diagnostics allow network administrators to quickly examine the quality of copper cables, identify the cable type, and detect cable errors.
Technical specifications
| D-Link DGS-1100-24PV2/E: | |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Ports & InterfacesNumber of basic switching RJ-45 Ethernet ports | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| ConnectionNetworking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,10BASE-TX,1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning Tree Protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Number of VLANs | 128 |
| Data transmissionSwitching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo Frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| SecurityDHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SSL/TLS |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| DesignProduct colour | Black |
| LED indicators | Yes |
| Certification | EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC |
| PerformanceBuilt-in processor | Yes |
| Processor frequency | 125 MHz |
| Memory type | DRAM |
| Flash memory | 16 MB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 255003 hours |
| Power controlAC input voltage | 100 - 240 V |
| Power consumption (max) | 19.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Number of Power over Ethernet (PoE) ports | 12 |
| Power per Power over Ethernet (PoE) port | 30 W |
| Power over Ethernet (PoE) budget | 100 W |
| Environmental conditionsOperating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 107.5 BTU/h |
| Weight & dimensionsWidth | 280 mm |
| Depth | 230 mm |
| Height | 44 mm |
Data sheet
| No. of Ports | 24 |
| Transmission | Gigabit 10/100/1000 |
| PoE | Yes |
