ACCESS POINT TP-LINK EAP613 AX1800 DUALBAND WIFI 6 INDOOR POE+
ACCESS POINT TP-LINK EAP613 AX1800 DUALBAND WIFI 6 INDOOR POE+
SKU:EAP613
Couldn't load pickup availability
TP-Link EAP613 AX1800 Ceiling Mount WiFi 6 Access Point. WiFi 6 offers faster speeds, lower latency, and higher capacity. It provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting channel settings and transmit power levels of neighboring APs on the same network.
Description
Features:
Ultrafast WiFi 6 Speeds: 574 Mbps concurrent on 2.4 GHz and 1201 Mbps on 5 GHz total 1775 Mbps Wi-Fi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Manage the entire network locally or from the cloud via web UI or Omada app.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
Powered by PoE+: Supports DC (adapter not included), 802.3at PoE+, and passive PoE for flexible installations.
Ultra-Slim Design: 160 mm × 33.6 mm sleek design brings more agility.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies.
Technical specifications
| TP-Link EAP613: | |
| Features2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Network standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Automatic channel scanner | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Virtual LAN functions | SSID-based VLAN assignment |
| Rate limit | Yes |
| Adaptive broadband management | Yes |
| Band steering (performance optimization) | Yes |
| Connection fairness (ATF) | Yes |
| Transmit power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) |
| Transmit power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
| Security Supported security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 |
| Number of SSIDs supported | 16 |
| Management features Web-based management | Yes |
| Management platform | Omada |

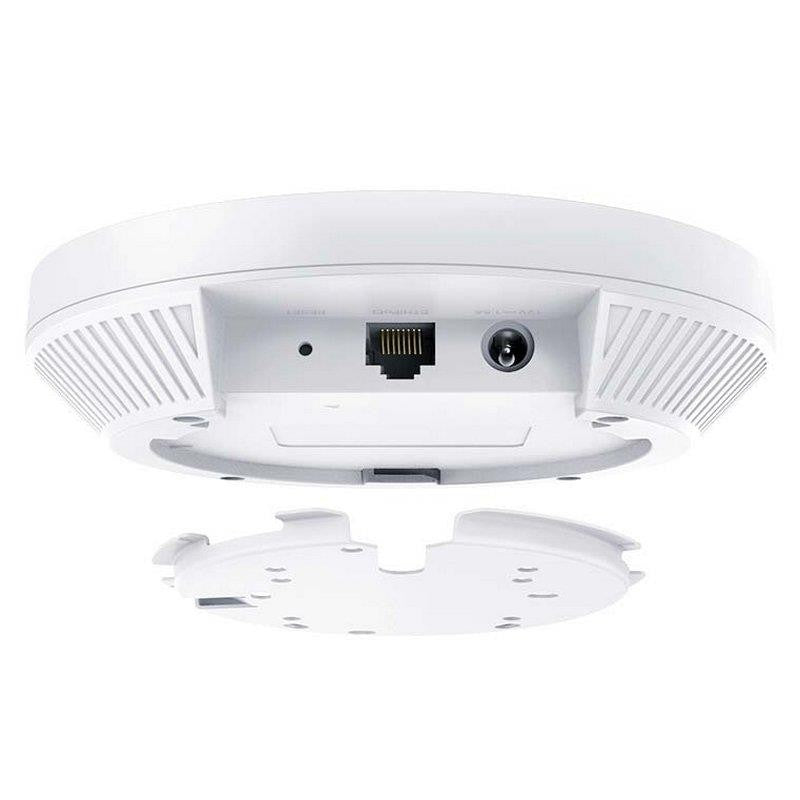

| Ports and Interfaces Ethernet LAN (RJ-45) port quantity | 1 |
| DC input jack | Yes |
| Power Control Power over Ethernet (PoE) | Yes |
| Design Placement | Ceiling, Wall |
| Product color | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Number of antennas | 4 |
| Antenna gain (max) | 5 dBi |
| Performance Supported operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Weight and dimensions Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Packaging content Number of products included | 1 piece(s) |
| Environmental conditions Relative humidity range for operation | 0 - 40% |
| Operating temperature range | 10 - 90 °C |
| Storage temperature range | -40 - 70 °C |
| Relative humidity range for storage | 5 - 90% |
Data sheet
| Function | Access Point |
