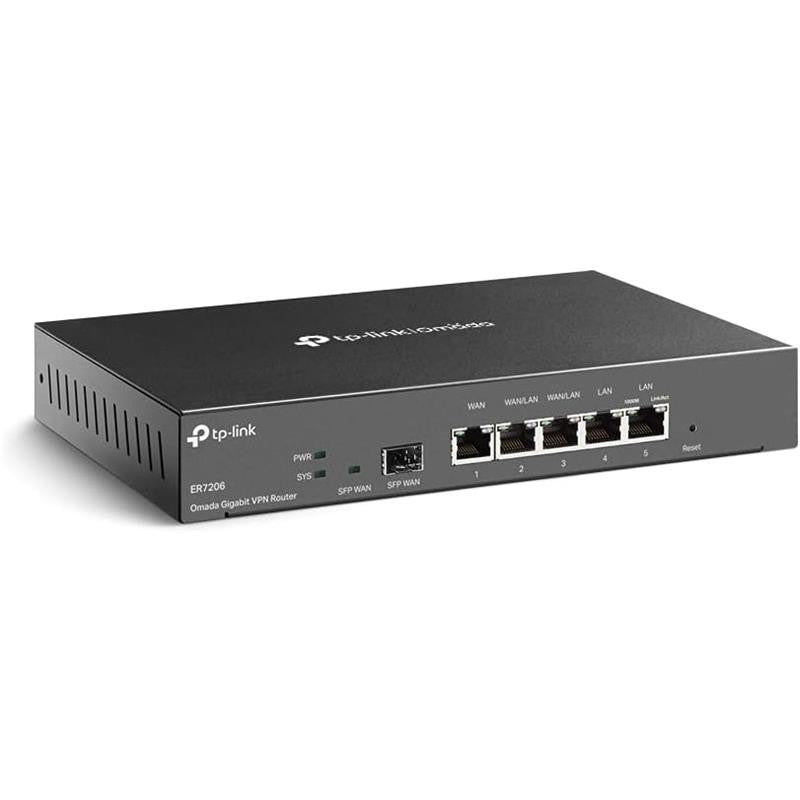

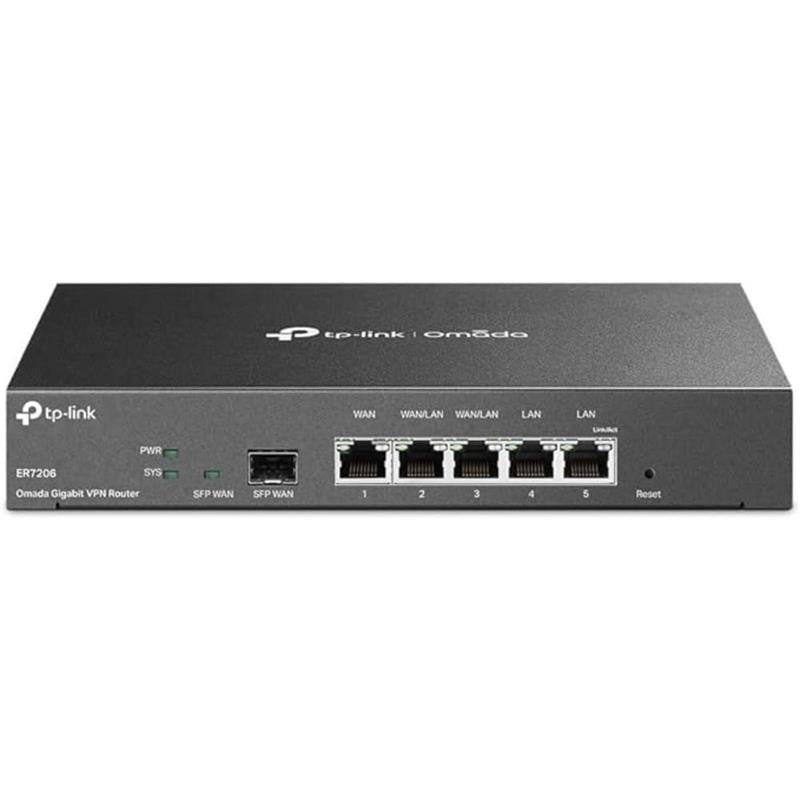

TP-LINK TL-ER7206 MULTI WAN GIGABIT SAFESTREAM VPN ROUTER
TP-LINK TL-ER7206 MULTI WAN GIGABIT SAFESTREAM VPN ROUTER
SKU:ER7206
Couldn't load pickup availability
As a gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, the TL-ER7206 enables remote, centralized management, anywhere, anytime. Standalone management via the web UI or app is also available to maximize convenience.
Description
Features

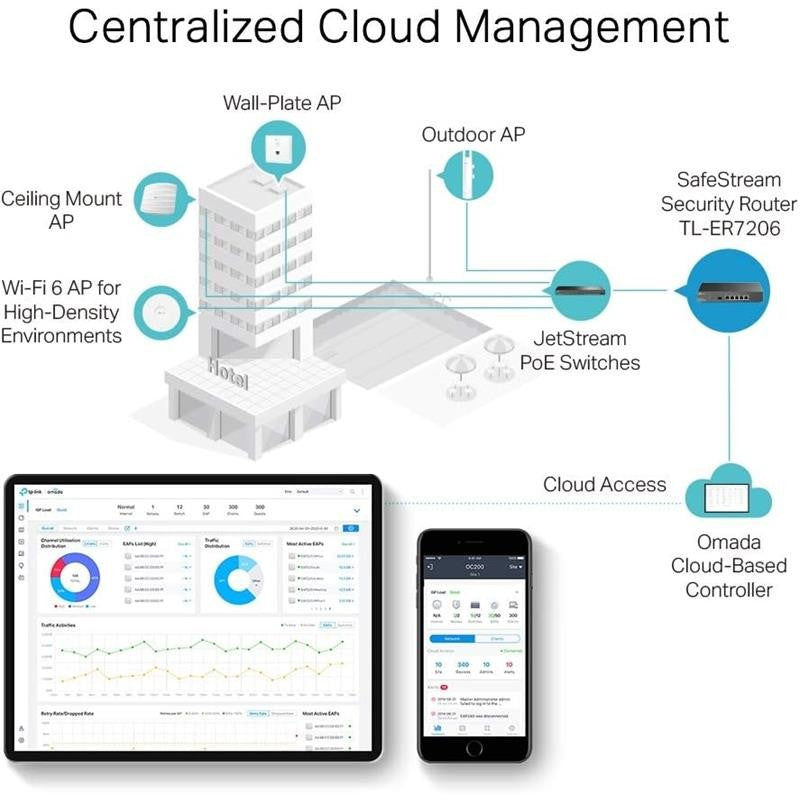

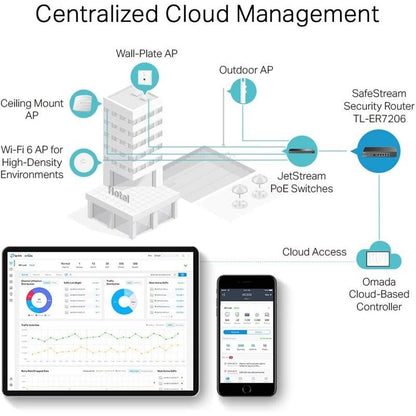

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud Access and Omada App for easy convenience and management.
Gigabit Ports: 1 Gigabit SFP and 5 Gigabit RJ45 ports provide high-speed wired connectivity.

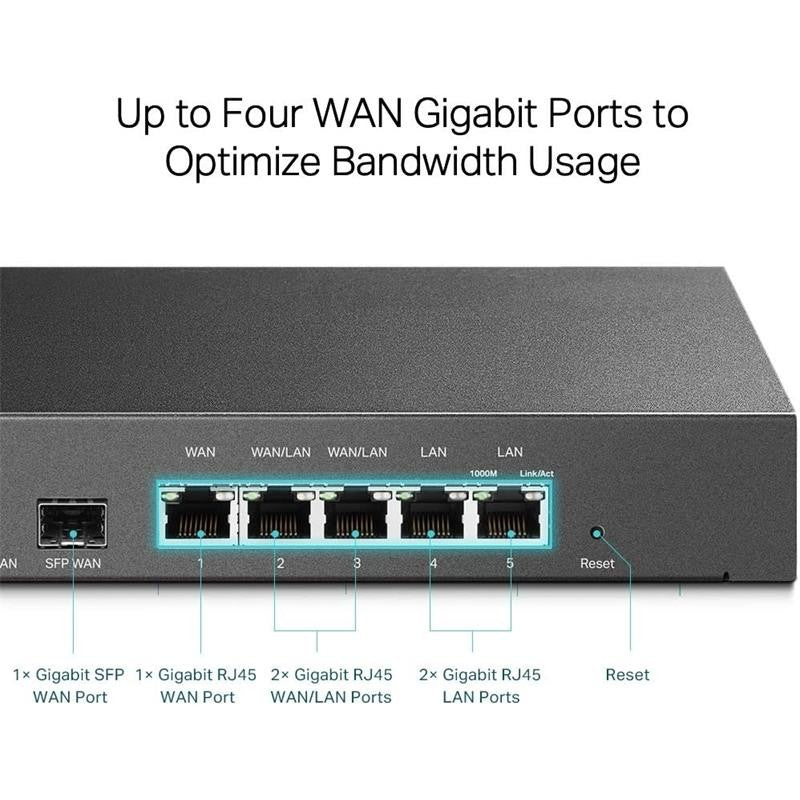

Up to 4 WAN Ports: 1 Gigabit SFP WAN port, 1 Gigabit RJ45 WAN port, 2 Gigabit WAN / LAN ports for optimized bandwidth usage.

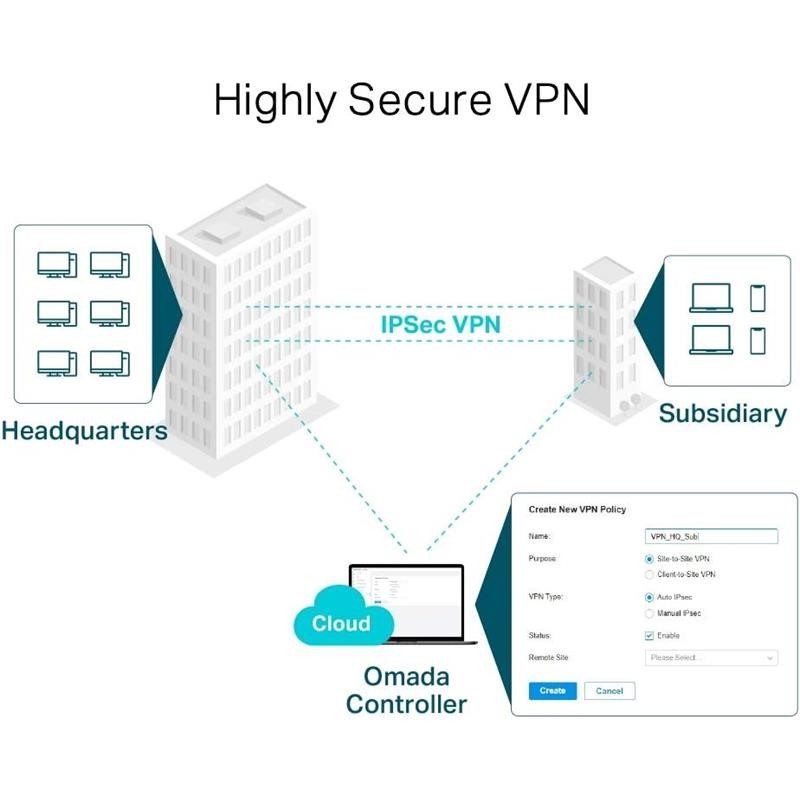

Highly Secure VPN: Supports up to 100 × LAN-to-LAN IPsec connections, 50 × OpenVPN *, 50 × L2TP and 50 × PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense, IP / MAC / URL filtering and more security features protect your network and data
Technical Specifications
| WAN ConnectionEthernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| Compatible with 3G / 4G USB modem | No |
| ConnectionNetwork standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN, data transfer rate | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Mobile networks3G | No |
| 4G | No |
| Management featuresWeb-based administration | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Ports & InterfacesEthernet LAN (RJ-45) quantity of ports | 4 |
| Number of SFP modules installed | 1 |
| ProtocolsDMZ support | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| SecuritySupported security algorithms | 3DES,128-bit AES,192-bit AES,256-bit AES,DES,IPSEC,MD5,SHA-1,SNMP,SNMPv2,SNMPv3 |
| Firewall | Yes |
| Firewall security | SPI |
| URL filtering | Yes |
| ARP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| System event log | Yes |
| FeaturesFlash Memory | 132 MB |
| Internal memory | 512 MB |
| Internal memory type | DRAM |
| Supported Windows operating systems | Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| Supported MAC operating systems | Yes |
| Supported Linux operating systems | Yes |
| Certification | CE, FCC, RoHS |
| DesignProduct color | Black |
| LED indicators | Activity, Link, Power, System, WAN |
| Power controlAC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Environmental conditionsOperating temperature range | 0 - 40 °C |
| Storage temperature range | -40 - 70 °C |
| Relative humidity range for operation | 10 - 90% |
| Relative humidity range during storage | 5 - 90% |
| Weight and dimensionsWidth | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
Data sheet
| No. of Ports | 4 |
| Transmission | Gigabit 10/100/1000 |
