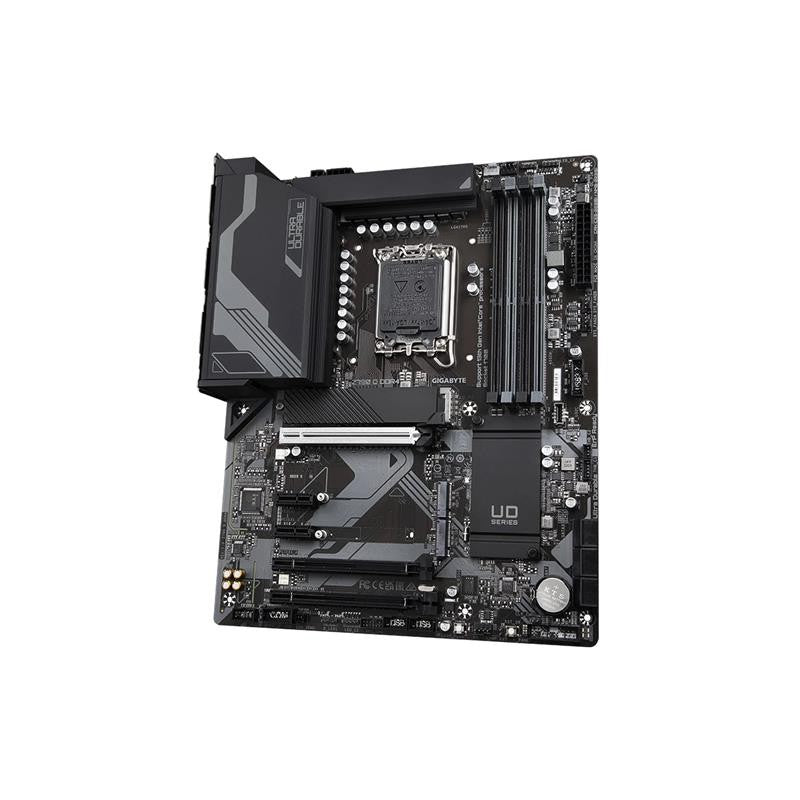

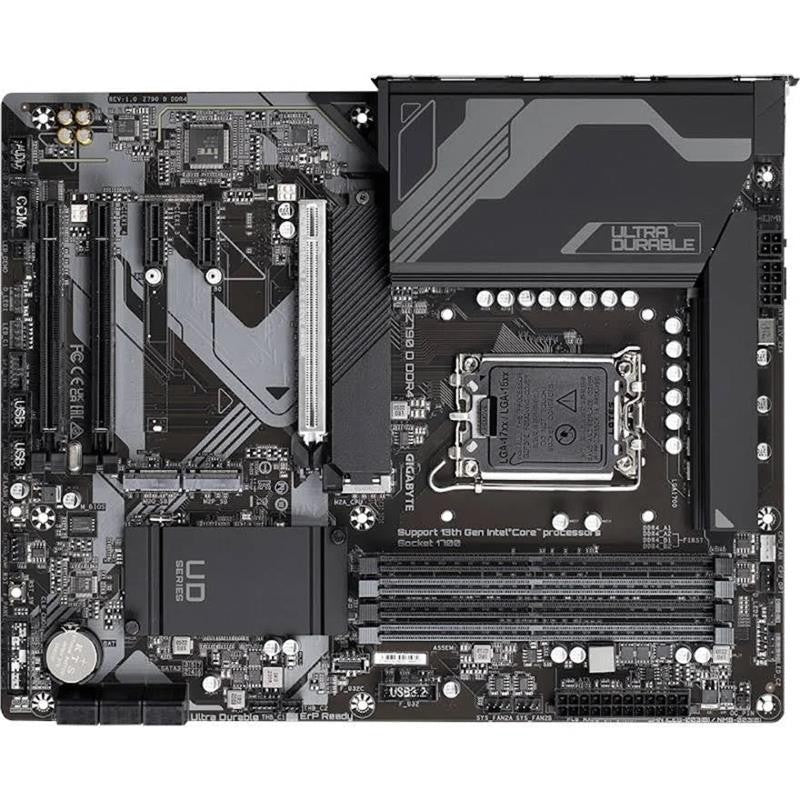

GIGABYTE GA-Z790-D AX G10 ATX Motherboard 4X DDR5 HDMI + DP USB-C

Description

Key Features:

Processor Compatibility: Compatible with 12th, 13th, and 14th generation Intel Core processors in the LGA 1700 socket.

Memory:

Supports DDR5 memory modules with speeds up to 7600 MHz (OC).

Features 4 DIMM slots, allowing a maximum memory capacity of 192 GB.

Dual-channel memory architecture.

Compatible with ECC and non-ECC memory modules.

Storage:

Equipped with 3 M.2 ports and 4 SATA III ports, offering support for a wide variety of HDD and SSD drives.

Supports RAID levels 0, 1, 5, and 10 for advanced storage configurations.

Connectivity:

USB:

1 x USB 3.2 Gen 2x2 Type-C? on the front panel.

4 x USB 3.2 Gen 1 Type-A and 1 x USB 3.2 Gen 2 Type-A (red) on the rear panel.

1 x USB 3.2 Gen 2x2 Type-C? on the rear panel.

Audio:

Realtek ALC897 chip with support for 7.1-channel audio.

Network:

2.5 GbE LAN Ethernet port with Realtek RTL8125 controller.

Support for Wi-Fi 6E (802.11ax) and Bluetooth 5.3 via additional modules.

Video:

1 x HDMI 2.1 on the rear panel with support for resolutions up to 4096x2304 pixels.

1 x DisplayPort 1.2 on the rear panel.

Expansion Slots:

1 x PCIe 5.0 x16 (PCIEX16) integrated into the CPU.

1 x PCIe 4.0 x16 (PCIEX4) and 2 x PCIe 4.0 x1 via the chipset.

Internal Connectors:

Multiple connectors for fans (CPU and system).

Connectors for addressable and standard RGB LED strips.

Connectors for additional USB ports, including USB Type-C?.

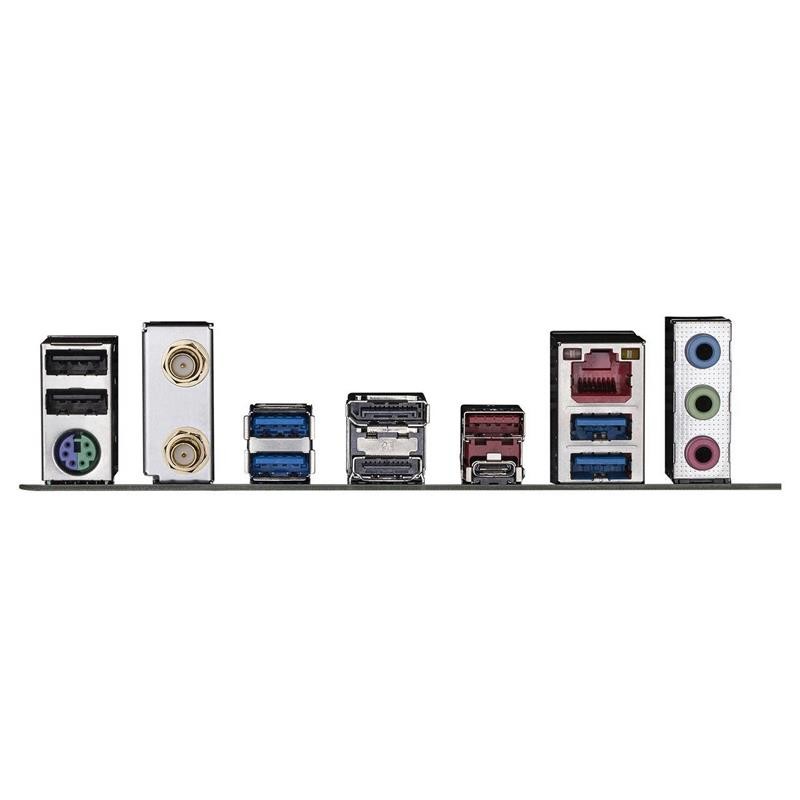

External Connectors:

2 x USB 2.0/1.1, 1 x PS/2 (keyboard/mouse), 1 x USB 3.2 Gen 2 Type-A (red), 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2x2 Type-C?, 1 x RJ-45 port and 3 x audio jacks.

BIOS and Software:

UC BIOS:

Redesigned user interface for intuitive operation with quick access to customizable options.

Quick Access function with 9 predefined options for easy access without needing to change modes.

PerfDrive technology to optimize performance based on cooling configuration, allowing modes such as Max Turbo, Optimization Mode, Spec Enhance Mode, and E-Core? Disable Mode.

GIGABYTE Control Center:

Unified software platform to control and monitor all compatible Gigabyte products. This motherboard combines design, performance, and functionality, providing a solid platform for building a high-performance system that meets the demands of modern applications and the most demanding games.
