Brand: TP-Link

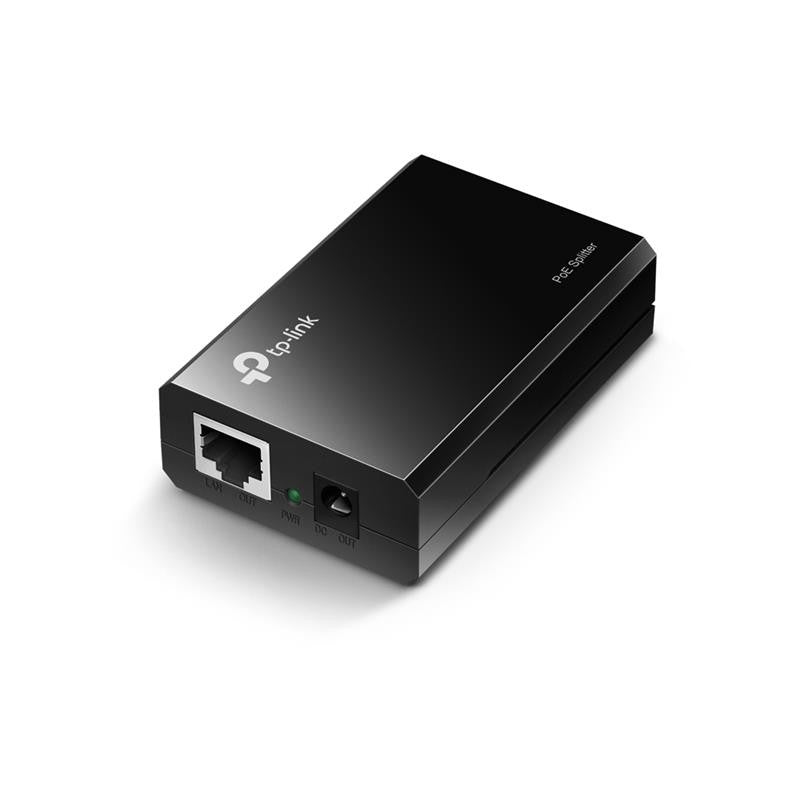

TP-LINK TL-POE10R POE SPLITTER
TP-LINK TL-POE10R POE SPLITTER
SKU:POE10R
Regular price
€16,51 EUR
Regular price
Sale price
€16,51 EUR
In stock · 4 units
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The TL-POE10R PoE Splitter is compatible with the IEEE 802.3af standard and can work with all IEEE 802.3af PoE PSE (power sourcing equipment) or PoE provider adapters, such as TP-LINK TL-SF1008P or TL POE150S, or other equivalent products, to deliver 12V, 9V, or 5V DC power where there is no power line or outlet, for devices like APs, IP cameras, or IP phones, etc.
Technical specifications
| : | |
| HARDWARE FEATURESBasic Function | |
| Compatible With IEEE 802.3af Compliant PSEsDelivers Power Up To 100 MetersOptional 12VDC, 9VDC or 5VDC Power SupplyInterface | |
| 2 10/100Mbps RJ45 portsAUTO Negotiation /AUTO MDI/MDIX1 12/9/5VDC OUTPUT POWER PORTNetwork Media | |
| 10BASE-T | UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100O STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100O STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)LED Indicator |
| PWRDimensions (L x W x H) | |
| 3.2*2.0*0.9 in.(81*52*24 mm)Power Supply | |
| 12W (12VDC)9W (9VDC)10W (5VDC)SOFTWARE FEATURESBasic Function | |
| compatible with IEEE 802.3af PSEDelivers power up to 100 meters12vdc or optional 5vdc power supplyOTHERSCertification | |
| FCC, CERequirements | |
| Microsoft® Windows® 98SE, NT, 2000, XP, Vista? or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.Environment | |
| Operating Temperature | 0" ~ 40" (32" ~ 104")Storage Temperature: -40" ~ 70" (-40" ~ 158")Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 90% non-condensing |
