Brand: TP-Link

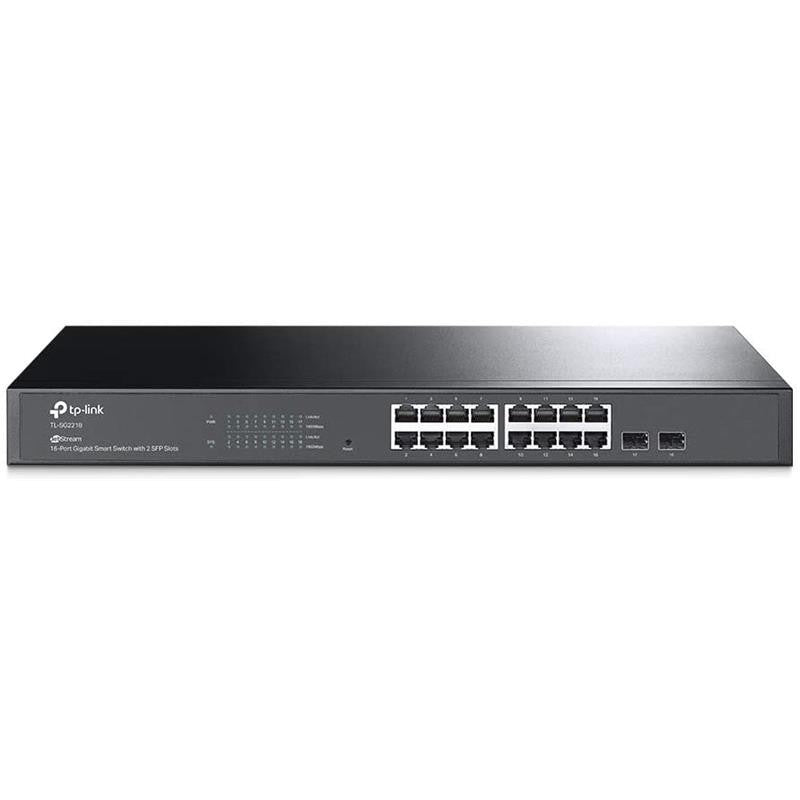

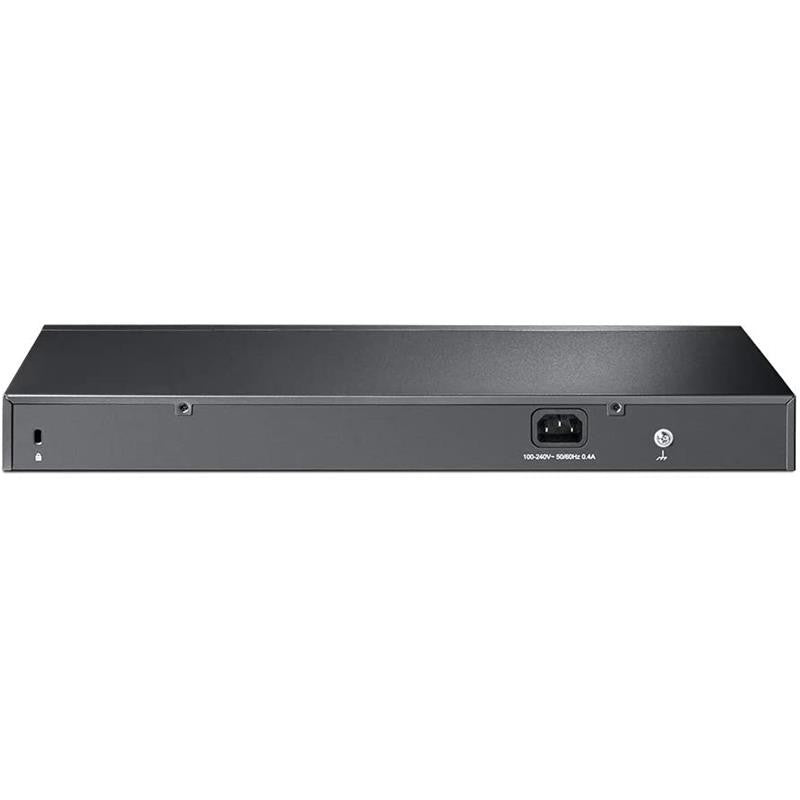

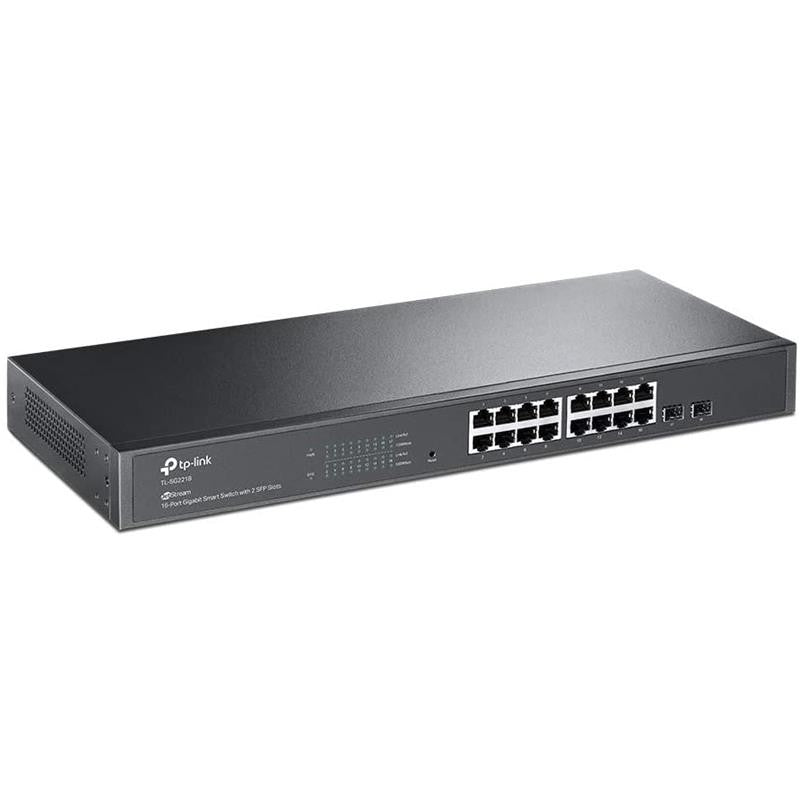

TP-LINK JETSTREAM 16-PORT GIGABIT +2 SFP 19-INCH RACK SWITCH
TP-LINK JETSTREAM 16-PORT GIGABIT +2 SFP 19-INCH RACK SWITCH
SKU:SG2218
Couldn't load pickup availability
TP-Link JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
Description
Features
Full Gigabit Ports: 16 gigabit RJ45 ports and 2 gigabit SFP slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and the Omada app for maximum convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP Snooping.
Standalone Management: Web, CLI (Telnet, SSH), SNMP, RMON, and Dual Image provide powerful management capabilities.
Technical specifications
| Management featuresSwitch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Command-line interface (CLI) | Yes |
| System event log | Yes |
| Ports & InterfacesBasic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Connection10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data transfer rates | 10, 100, 1000 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmissionSwitching capacity | 36 Gbit/s |
| Forwarding rate | 26.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo Frames support | Yes |
| Jumbo frames | 9 |
| SecurityDHCP features | DHCP relay, DHCP server, DHCPv6 client |
| Multicast featuresMulticast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| DesignRack mounting | Yes |
| Product color | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Power controlPower supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 12.3 W |
| Power over Ethernet (PoE)Power over Ethernet (PoE) | No |
| Environmental conditionsOperating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 41.97 BTU/h |
| Weight & dimensionsWidth | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| PackagingCables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
Data sheet
| No. of Ports | 16 |
| Transmission | Gigabit 10/100/1000 |
