Brand: TP-Link

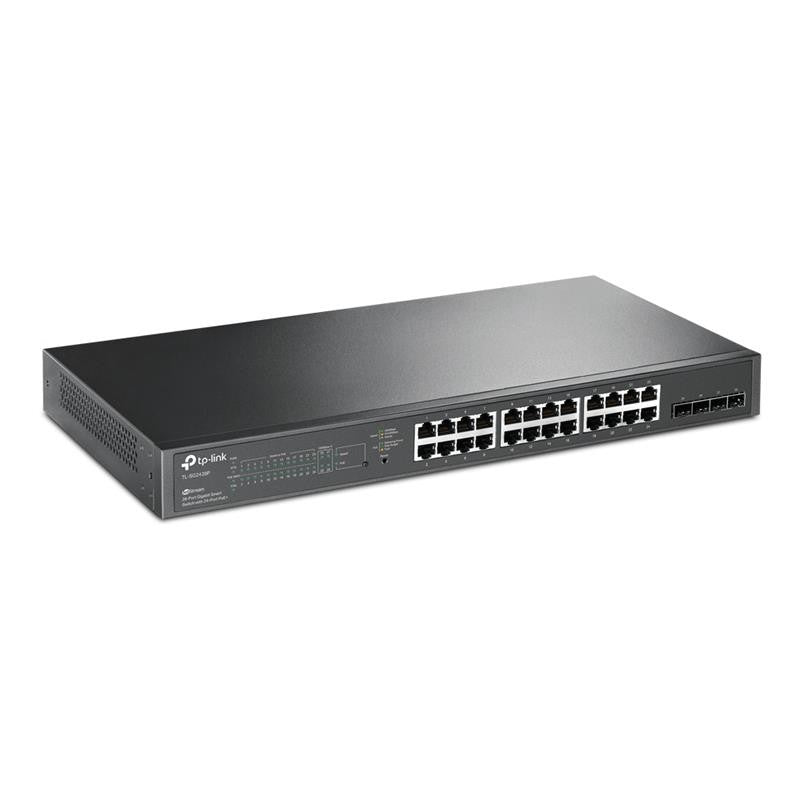

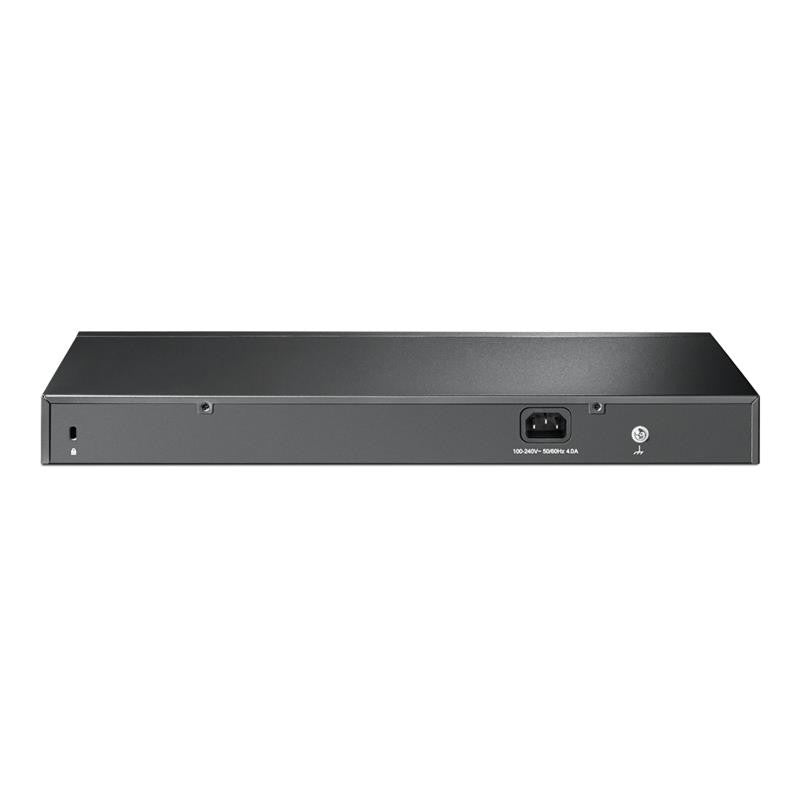

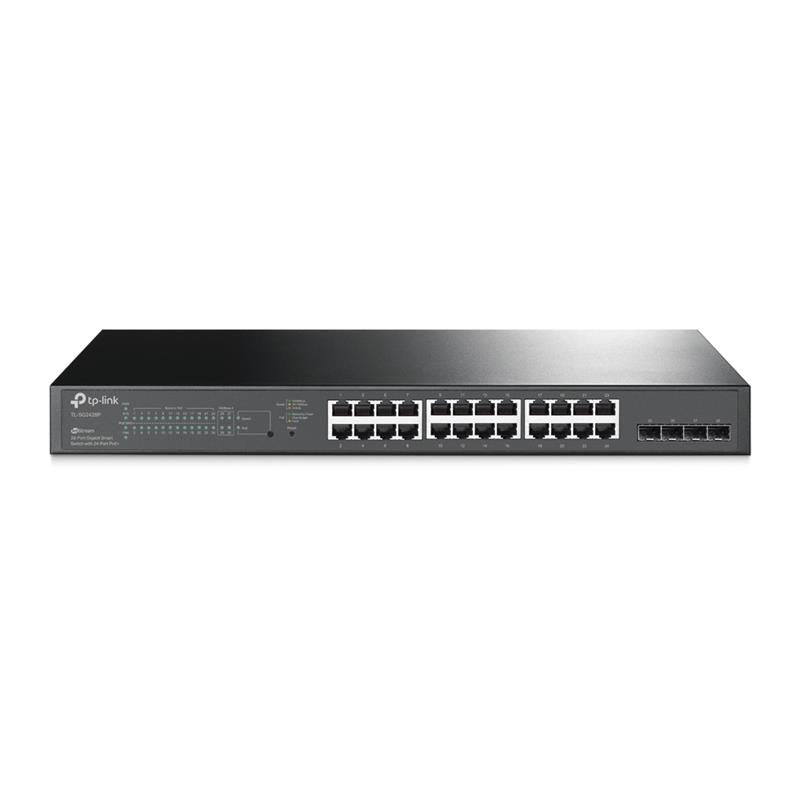

TP-LINK OMADA JETSTREAM 28-PORT TL-SG2428P SWITCH 24 POE+ 4 SFP RACK
TP-LINK OMADA JETSTREAM 28-PORT TL-SG2428P SWITCH 24 POE+ 4 SFP RACK
SKU:SG2428P
Couldn't load pickup availability
Unlock More Possibilities with Omada. 28-Port Gigabit Smart Switch with 24-Port PoE+
Description
Unlock More Possibilities with Omada. 28-Port Gigabit Smart Switch with 24-Port PoE+
250 W PoE Budget: 24 × 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
Full Gigabit Ports: 24 × gigabit PoE+ ports and 4 × gigabit SFP slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultimate convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery. Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network, all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Technical Specifications
| HARDWARE FEATURESStandards and Protocols | |
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1xInterface | |
| ? 24 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation / Auto MDI/MDIX)? 4 × Gigabit SFP SlotsNetwork Media | |
| ? 10BASE-T | UTP cable category 3, 4, 5 (maximum 100 m)? 100BASE-TX / 1000Base-T: UTP cable category 5, 5e or above (maximum 100 m)? 1000BASE-X: MMF, SMFFan Quantity |
| 2PoE+ Ports (RJ45) | |
| ? Standard | 802.3at / af compliant? PoE+ Ports: 24 Ports? PoE Power Budget: 250 WDimensions |
| 440 × 220 × 44 mm (17.3 × 8.7 × 1.73 in)Mounting | |
| Rack-mountableMaximum Power Consumption | |
| ? 32.1 W (110 V/ 60 Hz with no PD connected)? 308.6 W (110 V/ 60 Hz with 250 W PD connected)Max Heat Dissipation | |
| 109.53 BTU/h (with no PD connected)? 1052.94 BTU/h (with 250 W PD connected)PERFORMANCEBandwidth / Backplane | |
| 56 GbpsPacket Forwarding Rate | |
| 41.7 MppsMAC Address Table | |
| 8KJumbo Frame | |
| 9KBSOFTWARE FEATURESQuality of Service | |
| ? Supports 802.1p CoS / DSCP priority? Supports 8 priority queues? Queue scheduling | SP, WRR, SP + WRR? Port / flow-based rate limiting? IPv6 QoS? Voice VLANL2 and L2+ Features |
| ? Static Routing? DHCP Relay? DHCP Server? IGMP Snooping V1/V2/V3" 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)? Spanning Tree STP/RSTP/MSTP? BPDU Filtering/Guard? TC/Root Protect? Loopback detection? 802.3x Flow Control? LLDP, LLDP-MEDVLAN | |
| ? Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)? MAC / Protocol-based VLANAccess Control List | |
| ? L2-L4 Packet Filtering" MAC ACL? IP ACL? Combined ACL? IPv6 ACLSecurity | |
| ? AAA? Port Security? DHCP Snooping? IP-MAC-Port Binding? IPv6-MAC-Port Binding? ARP Inspection? 802.1x and Radius Authentication? SSH v1/v2" SSL v3/TLSv1.2" Broadcast/Multicast/Unknown-unicast Storm Control? DoS DefendIPv6 | |
| ? IPv4 / IPv6 Dual Stack" Multicast Listener Discovery (MLD) Snooping? IPv6 Neighbor Discovery (ND)? Path Maximum Transmission Unit (MTU) Discovery? Internet Control Message Protocol (ICMP) version 6" TCPv6 / UDPv6IPv6 Applications | |
| ? DHCPv6 Client? Ping6" Tracert6" Telnet (v6)? IPv6 SNMP? IPv6 SSH? IPv6 SSL? Http/Https? IPv6 TFTPMANAGEMENTOmada App | |
| YesCentralized Management | |
| ? Omada Cloud-Based Controller? Omada Hardware Controller (OC300)? Omada Hardware Controller (OC200)? Omada Software ControllerCloud Access | |
| Yes (via OC300, OC200, Omada Cloud Controller, or Omada Software Controller)Management Features | |
| ? Web-based GUI and CLI management? SNMP v1 / v2c / v3, compatible with public MIBs and TP-Link private MIBs? RMON (1, 2, 3, 9 groups)? CPU Monitoring? Port Mirroring? Firmware upgrade | TFTP and web? System Diagnostics: VCT? SYSLOG and Public MIBs? Dual Image? EEEOTHERCertifications |
| CE, FCC, RoHSPackage Contents | |
| ? TL-SG2428P? Power cord? Installation Guide? Resource CD? Rackmount Kit? Rubber FeetSystem Requirements | |
| Microsoft® Windows® XP, Vista? or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.Environmental Factors | |
| Operating Temperature | 0?~40" (32?~104")Storage Temperature: -40?~70" (-40?~158")Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
Data Sheet
| No. Ports | 28 |
| Transmission | Gigabit 10/100/1000 |
| PoE | Yes |
