Brand: TP-Link

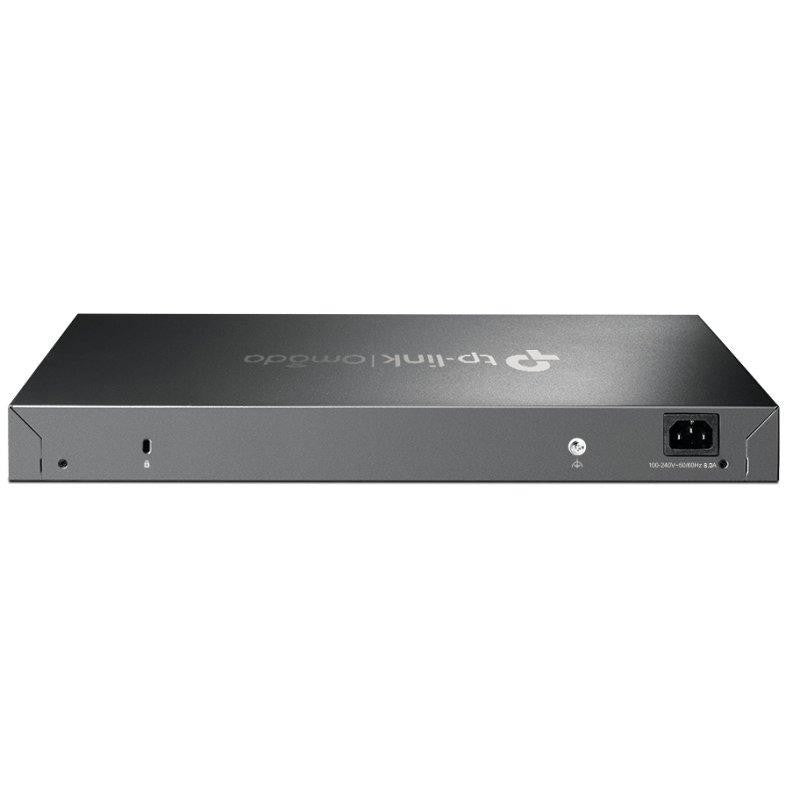

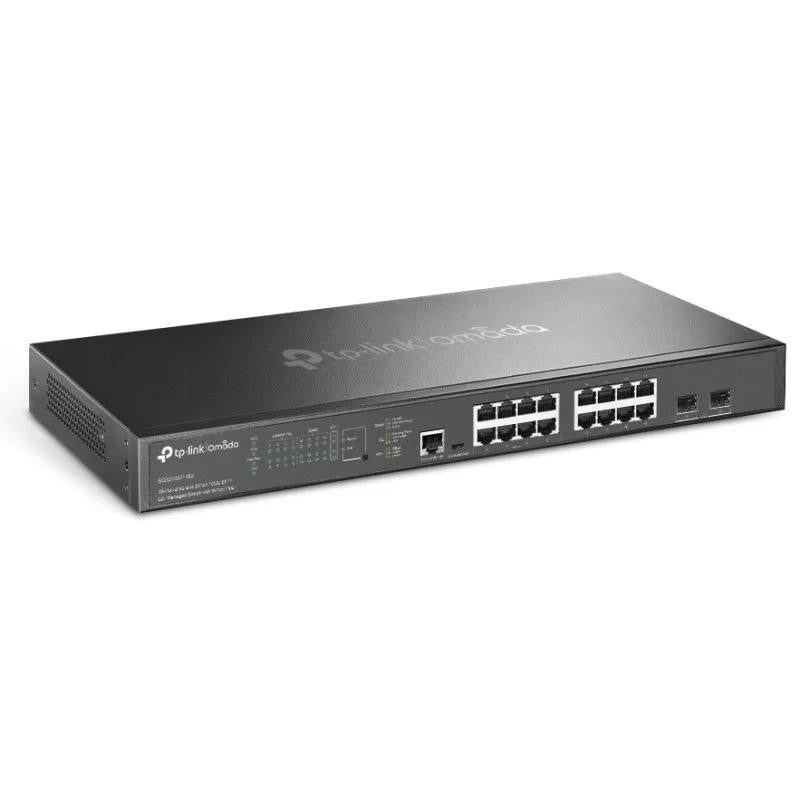

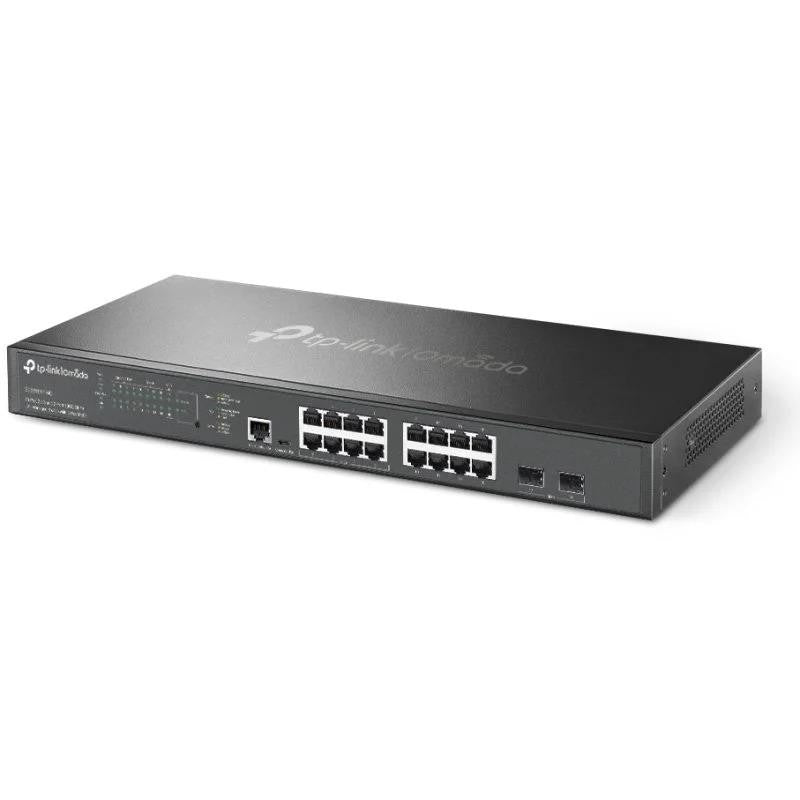

TP-LINK OMADA L2+ SWITCH 16-PORT 2.5G + 2 10G SFP+ 8 POE+
TP-LINK OMADA L2+ SWITCH 16-PORT 2.5G + 2 10G SFP+ 8 POE+
SKU:SG3218XP-M2
Couldn't load pickup availability
With 8 PoE+ 2.5G ports, the Omada SG3218XP-M2 switch is capable of providing sufficient bandwidth for Wi-Fi 7/6E/6 access points. Designed to use a single Ethernet cable for both data and power transmission, it supports a total PoE power supply of up to 240W* to suit any installation.
Description
Features
2.5G Ports. Integrates 24 2.5Gbps ports to maximize the performance of Wi-Fi 7, Wi-Fi 6E, and Wi-Fi 6 access points.
High Speed 10G. With 4 10Gbps SFP+ inputs with high bandwidth that prevents network congestion.
240W PoE Power: 8 PoE+ ports compatible with 802.3at/af with a total power supply of 240W*.
Full Omada Integration. Access advanced features such as Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Advanced Monitoring.
Easy Management. Cloud access with the Omada app, ensuring intuitive and efficient administration.
Traffic Optimization. Maximizes traffic performance ensuring efficient use of network resources.
Advanced Security. Integrates a combination of technologies such as IP-MAC-Port Binding, ACL, Port Security, DoS Protection, Broadcast Storm Control, DHCP, 802.1X, and Radius Authentication.
Voice and Video Optimization. With support for L2/L3/L4 QoS device prioritization and IGMP snooping.
Technical specifications
| TP-Link Omada SG3218XP-M2 | |
| Management featuresSwitch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Command Line Interface (CLI) configuration | Yes |
| System event log | Yes |
| MIB, support | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| Ports and InterfacesNumber of basic RJ-45 Ethernet switching ports | 16 |
| Basic RJ-45 Ethernet switching port type | 2.5G Ethernet (100/1000/2500) |
| Number of SFP+ module slots | 2 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in power connector |
| ConnectionNetwork standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning Tree Protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN, data transfer rates | 100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmissionSwitching capacity | 120 Gbit/s |
| Forwarding rate | 89.28 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Number of static routes | 48 |
| Number of IP interfaces | 32 |
| Jumbo Frames support | Yes |
| Jumbo Frames | 9000 |
| Packet buffer | 12 MB |
| SecurityDHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP | Yes |
| Supported security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU protection and filtering | Yes |
| IP-MAC port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast featuresMulticast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| ProtocolsManagement protocols | SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| DesignRack mounting | Yes |
| Form factor | 1U |
| Product color | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Power controlPower source | AC |
| Power supply included | Yes |
Technical specifications
| Number of ports | 16 |
| Transmission | Gigabit 10/100/1000 |
| PoE | Yes |
