Brand: TP-Link

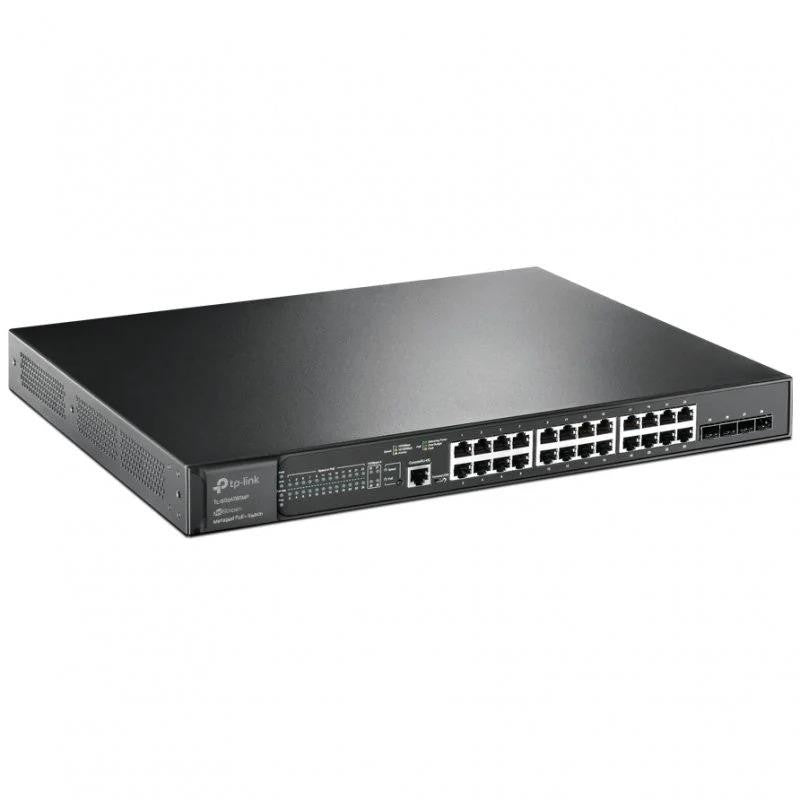

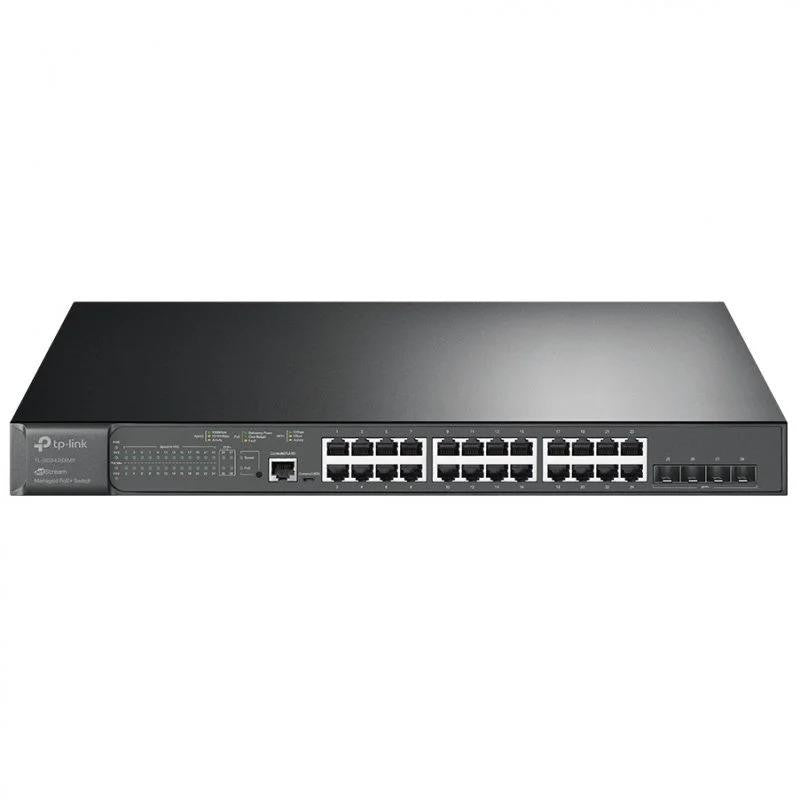

TP-LINK SWITCH 24-PORT GIGABIT X4 SFP+ 10G X16 POE+ X8 POE++ L2+
TP-LINK SWITCH 24-PORT GIGABIT X4 SFP+ 10G X16 POE+ X8 POE++ L2+
SKU:SG3428XMPP
Couldn't load pickup availability
JetStream L2+ managed switch with 4 10GE SFP+ ports and 24 PoE+ ports. As a 10G switch that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-SG3428X allows remote and centralized management, anywhere, anytime.
Description
Features
Ultra-fast 10G Uplink: 4 × 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
384 W PoE Budget: 24 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring.
Centralized Management: Cloud access and Omada app for ultra-convenient and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Technical specifications
| Management featuresSwitch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud managed | Yes |
| Location settings configuration (CLI) | Yes |
| System event log | Yes |
| MIB, support | Yes |
| Ports and InterfacesQuantity of basic RJ-45 Ethernet switching ports | 24 |
| Basic RJ-45 Ethernet switching port type | Gigabit Ethernet (10/100/1000) |
| Quantity of SFP+ module slots | 4 |
| Console port | RJ-45/Micro-USB |
| ConnectionNetwork standards | IEEE 802.11d, IEEE 802.1s, IEEE 802.1w |
| 10G support | No |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limit | Yes |
| Spanning Tree Protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN, data transfer speed | 10,100,1000 Mbit/s |
| Link aggregation detection | Yes |
| VLAN support | Yes |
| Data transmissionSwitching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 48 |
| Jumbo Frames, support | Yes |
| SecurityDHCP features | DHCP snooping |
| IGMP | Yes |
| IGMP proxy | Yes |
| Loop protection | Yes |
| Multicast featuresMulticast, support | Yes |
| DesignRack mounting | Yes |
| Product color | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Power controlPower supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE)Power over Ethernet (PoE) | Yes |
| Power over Ethernet Plus (PoE +) Number of ports | 24 |
| Power over Ethernet (PoE) Budget | 384 W |
| Environmental conditionsOperating temperature range | 0 - 45 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity range | 10 - 90% |
| Storage relative humidity range | 5 - 90% |
| Weight and dimensionsWidth | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| PackagingCables included | LAN (RJ-45) |
| Quick setup guide | Yes |
Data sheet
| Number of Ports | 24 |
| PoE | Yes |
