Brand: TP-Link

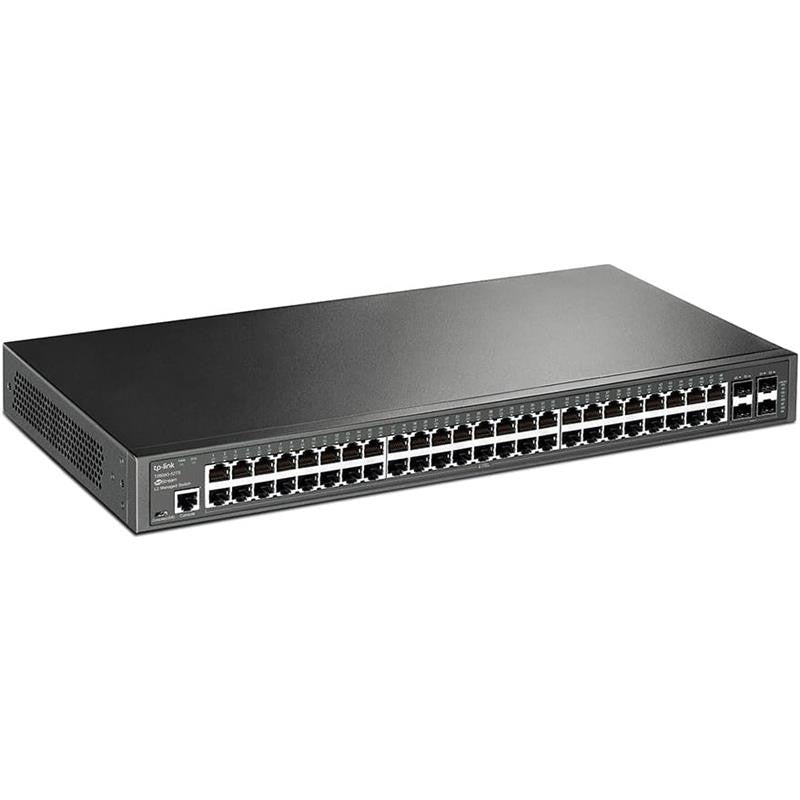

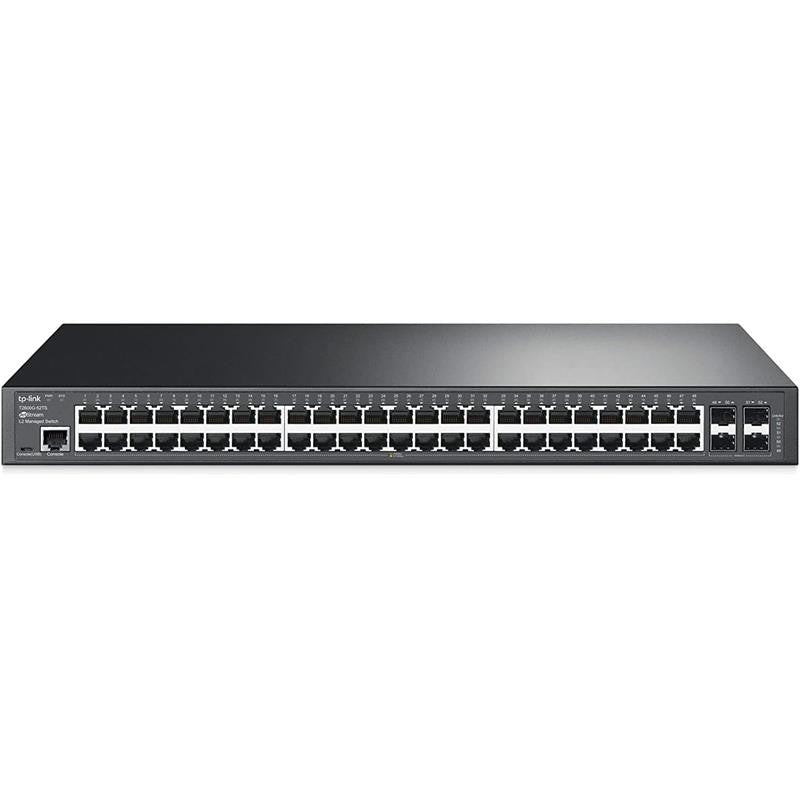

TP-LINK JETSTREAM 48-PORT + 4 SFP SWITCH TL-SG3452
TP-LINK JETSTREAM 48-PORT + 4 SFP SWITCH TL-SG3452
SKU:SG3452
Couldn't load pickup availability
The TP-LINK T2600G-52TS is a JetStream L2 Gigabit managed switch featuring 48 10/100/1000Mbps ports and 4 Gigabit SFP Slots. The switch provides high performance, L2 and L2+ features like static routing, enterprise-level QoS, and other advanced security strategies. IP-MAC-Port Binding and Access Control List (ACL) functions offer protection against broadcast storms, ARP, and Denial-of-Service (DoS) attacks, etc.
Description
Features
Gigabit Ethernet connections on all ports provide full data transfer speed
L2+ features, Static Routing, help route internal traffic for greater efficiency in network resource utilization
Port-MAC-IP Binding, ACL, Port Security, DoS Defense, Storm Control, DHCP Snooping, 802.1X and Radius Authentication provide robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
Supports IPv6 with dual-stack IPv4/IPv6, MLD snooping, IPv6 neighbor discovery
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image provide multiple management policies
Technical specifications
| Management featuresSwitch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Managed through the cloud | Yes |
| Location settings configuration (CLI) | Yes |
| System event log | Yes |
| Ports and InterfacesQuantity of basic RJ-45 Ethernet switching ports | 48 |
| Basic RJ-45 Ethernet switching port type | Gigabit Ethernet (10/100/1000) |
| Quantity of SFP module slots | 4 |
| Console port | RJ-45/Micro-USB |
| ConnectionNetwork standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w |
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning Tree Protocol | Yes |
| Ethernet LAN, data transfer speed | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Data transmissionSwitching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo Frames support | Yes |
| SecurityDHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 snooping |
| IGMP | Yes |
| MAC, address filter | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast featuresMulticast, support | Yes |
| DesignRack mounting | Yes |
| Product color | Black |
| Certification | CE, FCC, RoHS |
| Power controlAC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE)Power over Ethernet (PoE) | No |
| Environmental conditionsOperating temperature range | 0 - 40 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity range | 10 - 90% |
| Storage relative humidity range | 5 - 90% |
| Heat dissipation | 111.91 BTU/h |
| Weight and dimensionsWidth | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| PackagingCables included | AC |
| Quick setup guide | Yes |
| Mounting rack | Yes |
Data sheet
| No. of Ports | 52 |
| Transmission | Gigabit 10/100/1000 |
