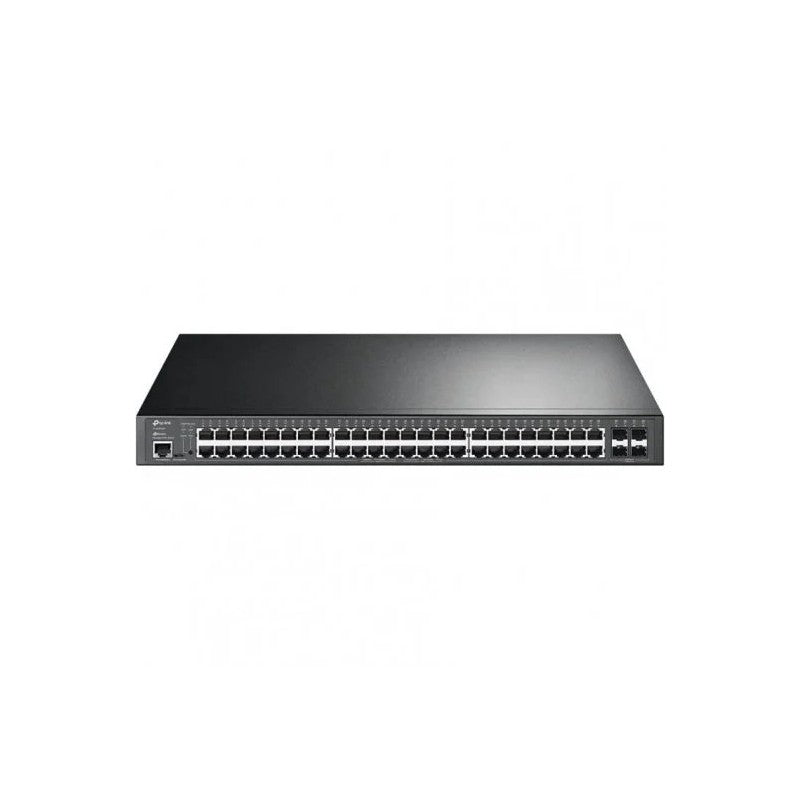

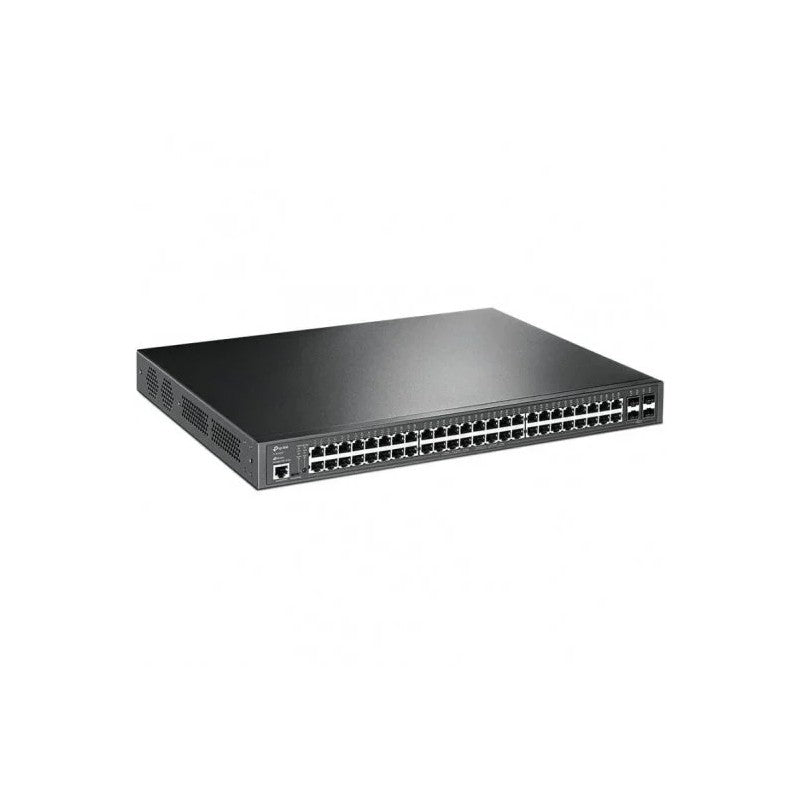

TP-LINK GIGABIT 48-PORT TL-SG3452P MANAGED POE SWITCH
TP-LINK GIGABIT 48-PORT TL-SG3452P MANAGED POE SWITCH
SKU:SG3452P
Couldn't load pickup availability
Description
Features:
384 W PoE Budget: 48 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
Full Gigabit Ports: 48 Gigabit RJ45 ports and 4 Gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada App for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Technical Specifications
| : | |
| Management Features | |
| Switch Type | Managed |
| Switch Layer | L2/L2+ |
| Quality of Service (QoS) Support | Yes |
| Web-based Management | Yes |
| Cloud Managed | Yes |
| ARP Inspection | Yes |
| Command Line Interface (CLI) | Yes |
| System Event Log | Yes |
| Ports and Interfaces | |
| Quantity of Basic Switching RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Quantity of SFP Module Slots | 4 |
| Console Port | RJ-45/micro-USB |
| Connection | |
| Networking Standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
| 10G Support | No |
| Port Mirroring | Yes |
| IP Routing | Yes |
| Policy-based Routing | Yes |
| Flow Control Support | Yes |
| Link Aggregation | Yes |
| Broadcast Storm Control | Yes |
| Rate Limiting | Yes |
| Spanning Tree Protocol | Yes |
| Head-of-line (HOL) Blocking | Yes |
| Ethernet LAN, Data Transfer Rate | 10,100,1000 Mbit/s |
| Wake-on-LAN Support | Yes |
| VLAN Support | Yes |
| Number of VLANs | 4000 |
| Data Transmission | |
| Switching Capacity | 104 Gbit/s |
| Forwarding Rate | 77.4 Mpps |
| MAC Address Table | 16000 entries |
| Static Route | Yes |
| Jumbo Frames Support | Yes |
| Security | |
| DHCP Features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP | Yes |
| IGMP Entries | 511 |
| MAC Address Filtering | Yes |
| SSH/SSL Support | Yes |
| Loop Protection | Yes |
| BPDU Protection and Filtering | Yes |
| Authentication | MAC-based Authentication, Port-based Authentication |
| Password Protection | Yes |
| Multicast Features | |
| Multicast Support | Yes |
| Design | |
| Rack Mounting | Yes |
| Product Color | Black |
| Number of Fans | 3 Fan(s) |
| Power Control | |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Consumption (Max) | 485.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet Plus (PoE+) Port Quantity | 48 |
| Power per Power over Ethernet (PoE) Port | 30 W |
| Power over Ethernet (PoE) Budget | 384 W |
| Environmental Conditions | |
| Operating Temperature Range | 0 - 40 °C |
| Storage Temperature Range | -40 - 70 °C |
| Operating Relative Humidity Range | 10 - 90% |
| Storage Relative Humidity Range | 5 - 90% |
| Weight and Dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging | |
| User manual | Yes |
| Packaging type | Box |
Technical sheet
| No. of Ports | 48 |
| Transmission | Gigabit 10/100/1000 |
| PoE | Yes |
