Brand: TP-Link

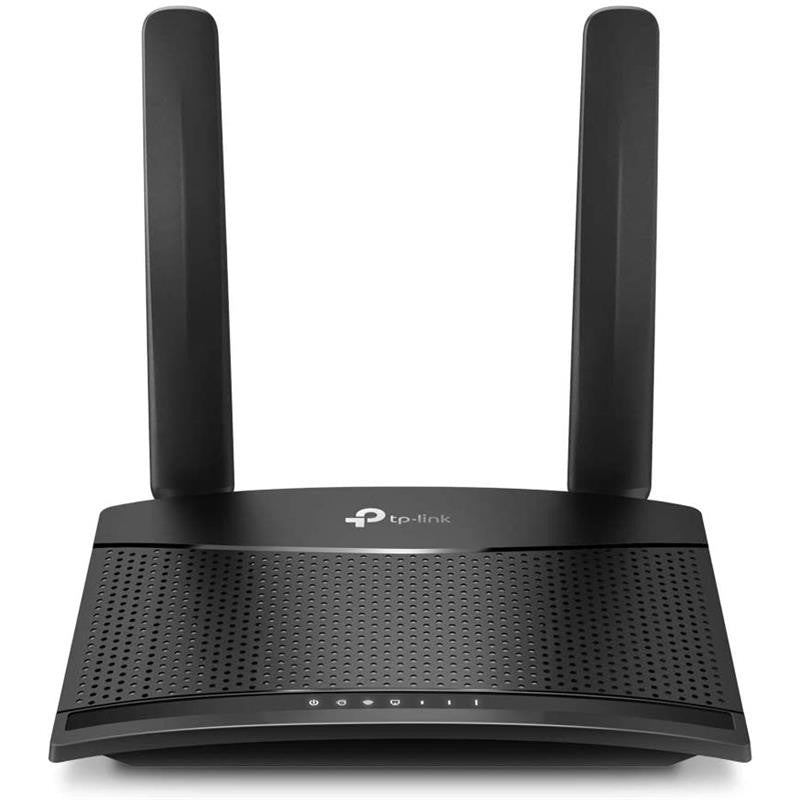

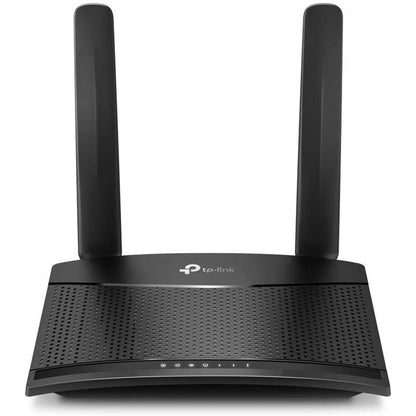

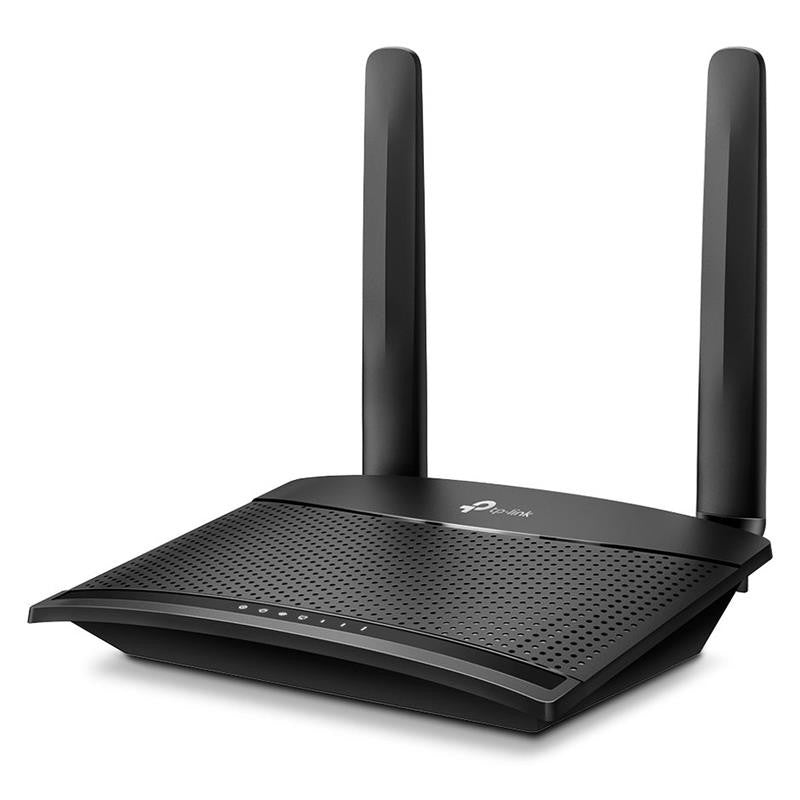

WIRELESS ROUTER TP-LINK TL-MR100 3G/4G 300MBPS
WIRELESS ROUTER TP-LINK TL-MR100 3G/4G 300MBPS
SKU:TL-MR100
Couldn't load pickup availability
Make the most of your 3G/4G connection with this TP-Link TL-MR100 modem/router, which allows download speeds of up to 150 Mbps. The Archer MR100 lets you share your 4G connection among multiple Wi-Fi devices.
Description
Features:
Cutting-edge 4G network: Share Internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

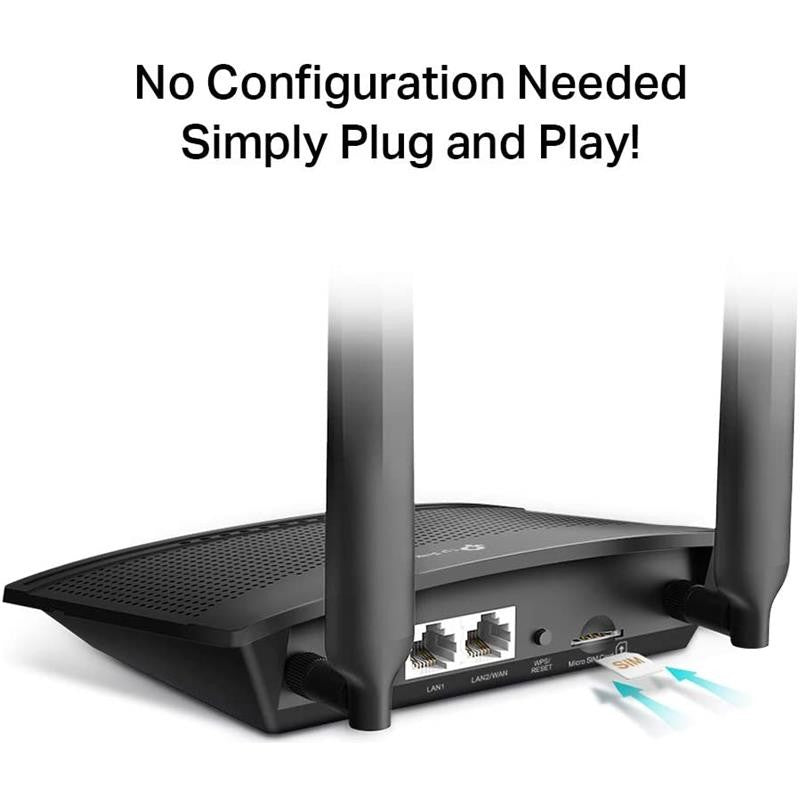

Connect a SIM card and play: No configuration needed, SIM card compatibility in over 100 countries is ensured by years of field tests
Two advanced detachable LTE antennas: Enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode: Connect an Ethernet cable to the LAN/WAN port for flexible access as a backup option if a 4G connection cannot be obtained
Technical specifications
| TP-Link TL-MR100: | |
| Hardware features | |
| Interface: | |
| 1 10/100 Mbps LAN port, 1 10/100 Mbps LAN/WAN port | |
| 1 micro SIM card slot | |
| Buttons | WPS/Reset button |
| External power supply (EU) | 9 V / 0.85 A |
| Dimensions | 154 x 114 x 36 mm |
| Antennas | 2 external detachable 4G LTE antennas |
| Wireless features | |
| Wireless standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal rate | 300 Mbps |
| Reception sensitivity: | |
| 11g 54M | -74 dBm |
| 11n HT20 | -71 dBm |
| 11n HT40 | -68 dBm |
| Transmission power | < 20 dBm (2.4 GHz) |
| Wireless functions | Enable/Disable wireless radio, wireless schedule, WMM, wireless statistics |
| WAN Failover | Yes |
| Wireless security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Network type: | |
| 4G | FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) |
| TDD-LTE | B38/B40/B41 (2600/2300/2500 MHz) |
| 3G | HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Software features | |
| Security | IPv4 SPI firewall, IP and MAC address binding |
| Operation mode | 3G/4G router, wireless router |
| WAN type | Dynamic IP / Static IP / PPPoE / PPTP (dual access) / L2TP (dual access) |
| Management | Local management, remote management |
| DHCP | Server, DHCP client list, address reservation |
| Port forwarding | ALG, virtual server, port triggering, UPnP, DMZ |
| DNS | Dynamic DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest network | Yes, 2.4 GHz |
| Administration | Firmware upgrade, factory defaults, system log, diagnostic tools |
| Other | |
| Certifications | CE, RoHS |
| Package contents: | |
| 300 Mbps Wireless N 4G LTE Router TL-MR100 | |
| Power adapter | |
| RJ45 Ethernet cable | |
| Quick installation guide | |
| Requirements | |
| Microsoft Windows 98SE / NT / 2000 / XP / Vista ? / 7/8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux | |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other | |
| Java-enabled browser | |
| Micro SIM card | |
| Environmental factors: | |
| Operating temperature | 0 ~ 40 °C |
| Storage temperature | -40 ~ 70 °C |
| Operating humidity | 10% ~ 90% (non-condensing) |
| Storage humidity | 5% ~ 90% (non-condensing) |
Data sheet
| Function | Router |
| No. Ports | 4 |
| SIM Connectivity | 4G |
