Brand: TP-Link

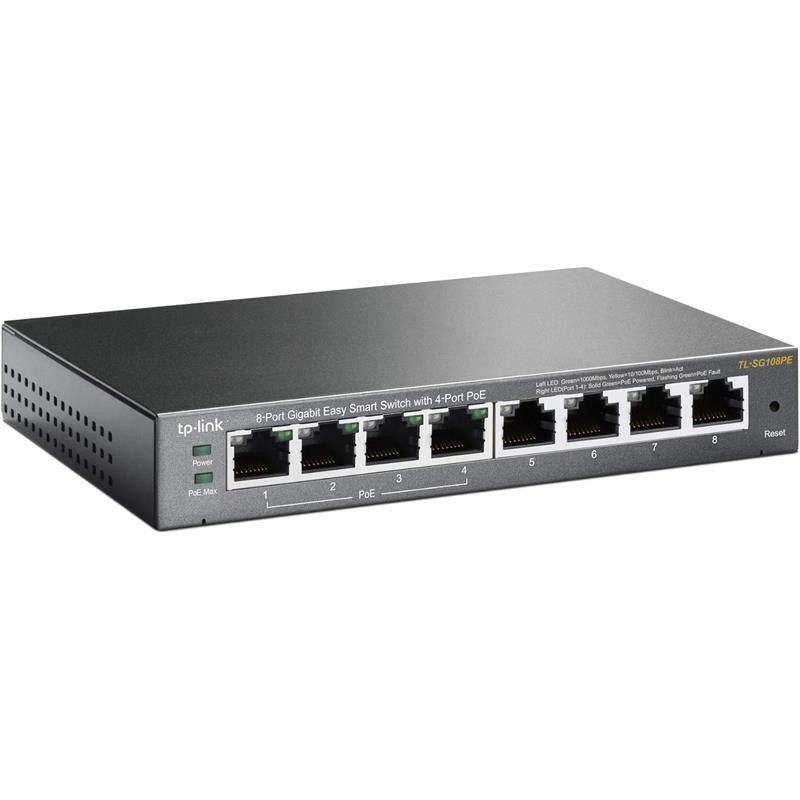

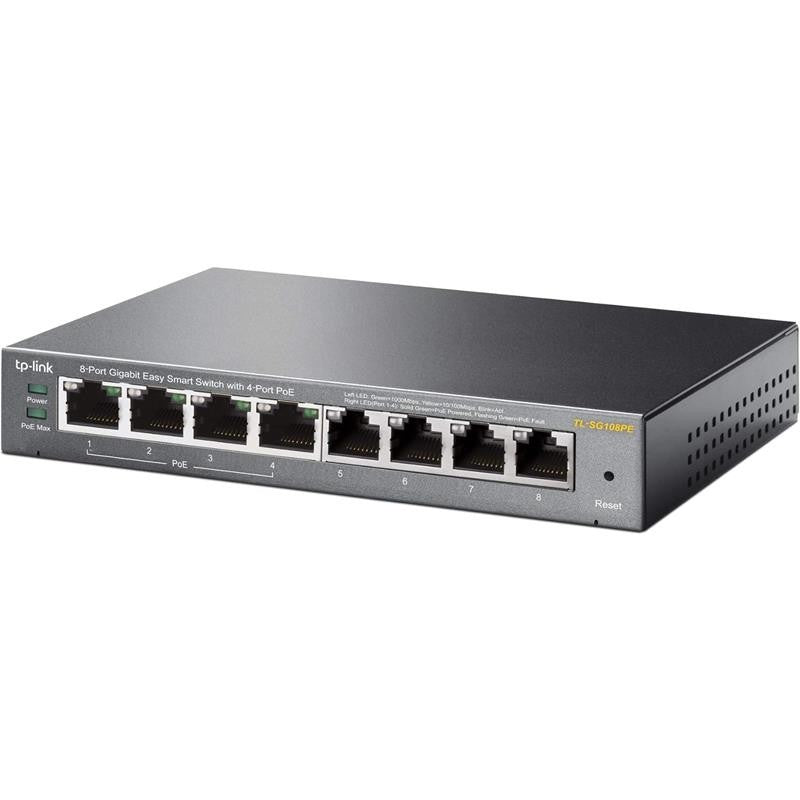

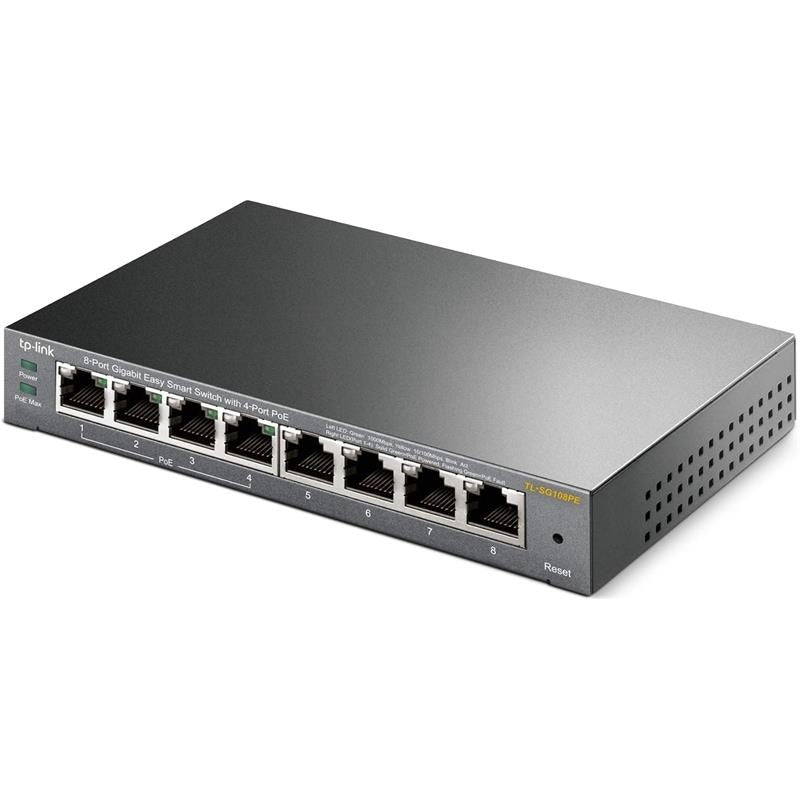

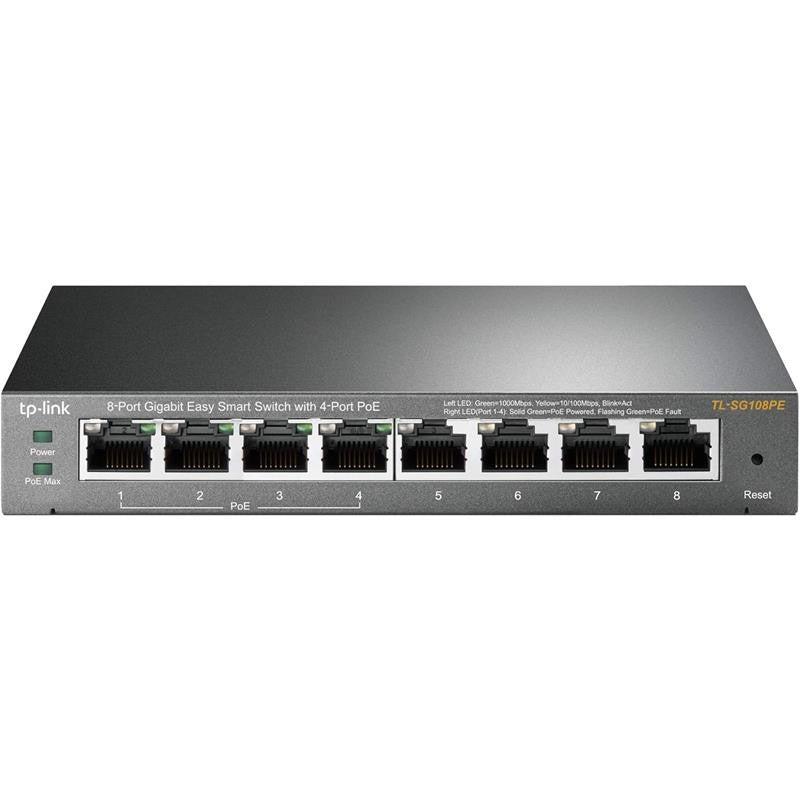

TP-LINK GIGABIT 8-PORT TL-SG108PE EASY SMART MANAGED 4 POE SWITCH
TP-LINK GIGABIT 8-PORT TL-SG108PE EASY SMART MANAGED 4 POE SWITCH
SKU:TL-SG108PE
Couldn't load pickup availability
The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, representing a powerful upgrade from an unmanaged switch. It is specifically designed for small businesses requiring simple network management with PoE functionality. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and improved QoS. Additionally, with port, tag, and MTU-based VLAN, the TL-SG108PE can enhance security and meet more network segmentation requirements.
Description
Power Over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (Port 1 to Port 4) on the switch support the Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power to IEEE 802.3af-compliant powered devices.
Effective Management
The TL-SG108PE offers network monitoring so users can observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE provides a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. With port mirroring, loop prevention, and cable diagnostics functions, the TL-SG108PE can identify and even locate connection problems in your business network. Furthermore, administrators can designate traffic priority based on port priority, 802.1P priority, and DSCP priority, to ensure that voice and video are always clear, noise-free, and lag-free. In addition, to improve network security and performance, the TL-SG108PE supports MTU-based VLAN, port-based VLAN, and 802.1Q-based VLAN functions. The TL-SG108PE is an upgrade from the plug-and-play unmanaged switch, offering great value to the end user while enhancing their network.
Ease of Use
The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X negotiation on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port detects the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts to promote compatibility and optimize performance. Its compact and convenient size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.
Features:
8 10/100/1000Mbps RJ45 ports
With 4 PoE ports providing a maximum of 15.4W per port, data and power are transmitted over a single cable
Maximum PoE support of 55W
Provides network monitoring, traffic prioritization, and VLAN functions
Easy network setup with plug-and-play connectivity
The web-based user interface and Easy Smart Configuration Utility simplify setup
Technical specifications
| TP-LINK TL-SG108PE: | |
| Ports & Interfaces | |
| Number of basic switching RJ-45 Ethernet ports | 8Basic switching RJ-45 Ethernet port type: Gigabit Ethernet (10/100/1000)Weight & dimensions |
| Width | 158 mmDepth: 101 mmHeight: 25 mmPower control |
| Power consumption (max) | 65.2 WAC input voltage: 220 VAC input frequency: 50 HzOutput voltage: 48 VOutput current: 1.25 AConnection |
| Network standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3xPort mirroring: YesLink aggregation: YesBroadcast storm control: YesRate limiting: YesData transmission |
| MAC address table | 4000 entriesSwitching capacity: 16 Gbit/sJumbo Frames support: YesPacket forwarding rate (1 Gbps): 11900000 ppsJumbo frames: 15Security |
| IGMP | YesLoop protection: YesManagement features |
| Switch type | UnmanagedPackage content |
| User manual | YesDesign |
| LED indicators | Activity, Link, PoE, Power, Speed, StatusCertification: CE, FCCPower over Ethernet (PoE) |
| Power over Ethernet (PoE) | YesNumber of Power over Ethernet (PoE) ports: 4Power over Ethernet Plus (PoE +) number of ports: 4Power over Ethernet (PoE) voltage range: 220 - 220 VPower over Ethernet (PoE) budget: 55 WPerformance |
| Packet buffer memory | 1.5 MBVirtual LAN functions |
| VLAN support | YesNumber of VLANs: 32 |
Data sheet
| No. Ports | 8 |
| Transmission | Gigabit 10/100/1000 |
| PoE | Yes |
