Brand: TP-Link

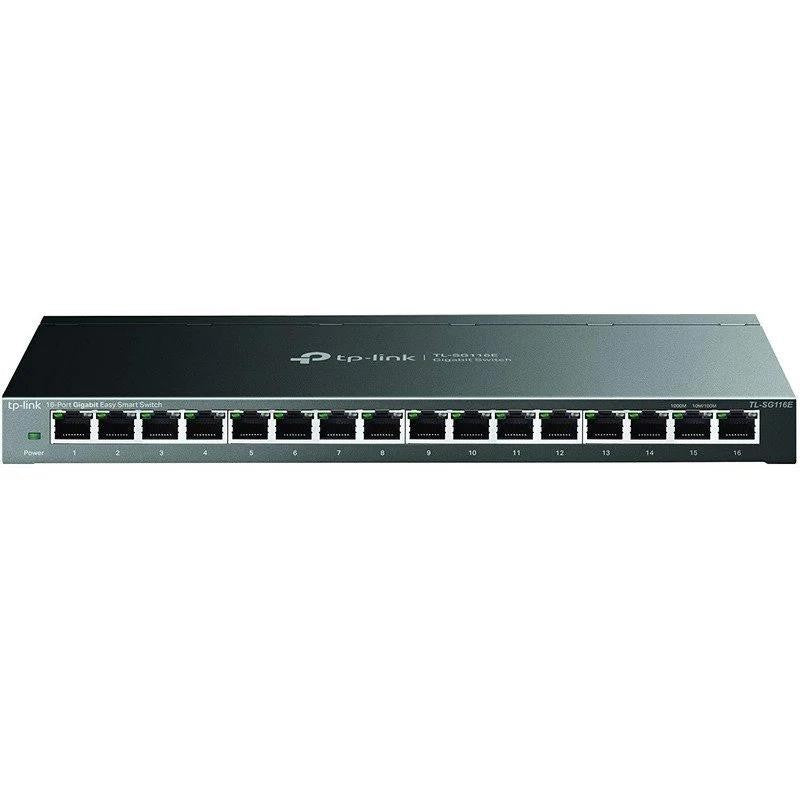

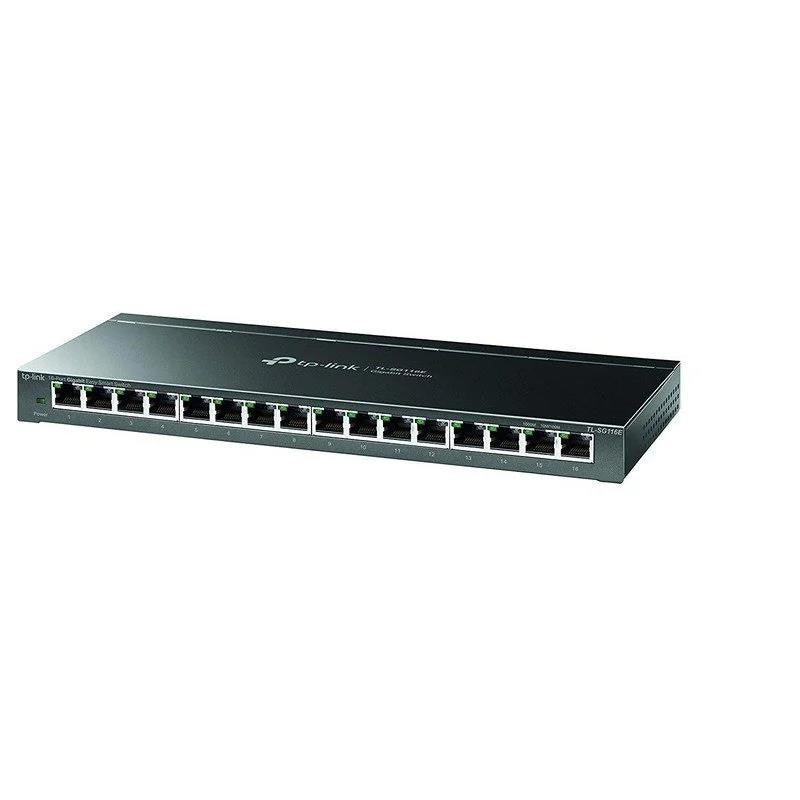

TP-LINK 16-PORT GIGABIT SWITCH TL-SG116E METAL CASING
TP-LINK 16-PORT GIGABIT SWITCH TL-SG116E METAL CASING
SKU:TL-SG116E
Regular price
€78,47 EUR
Regular price
Sale price
€78,47 EUR
In stock · more than 5 units
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The TL-SG116 desktop switch easily provides you with increased network speed for your server and/or backbone network. Whether at home or in the office, the TL-SG116 always helps you with your business quickly and easily.
Description
Features:
16 RJ45 10/100/1000Mbps Ports

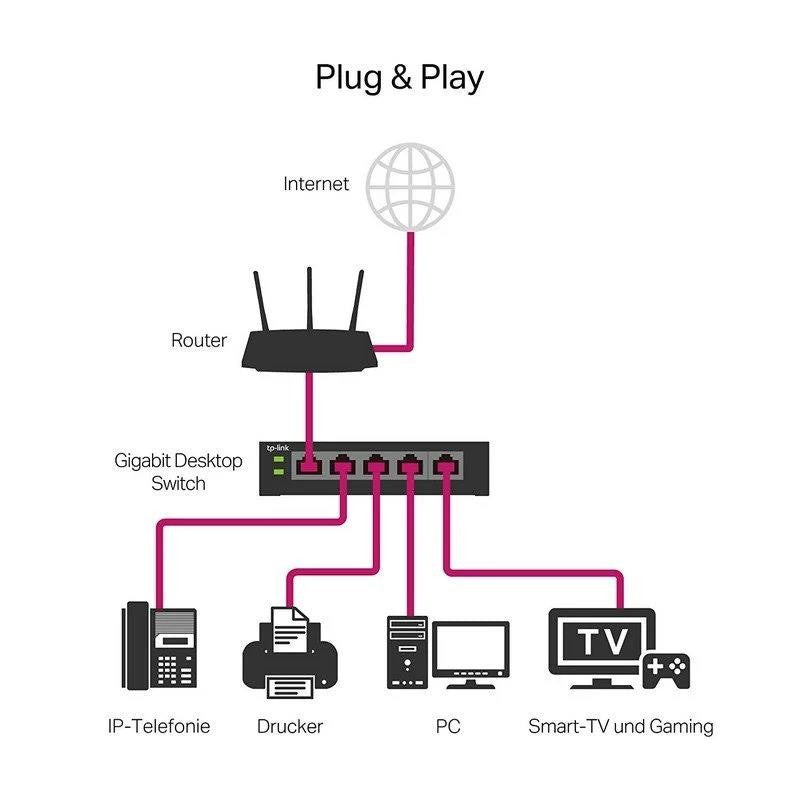

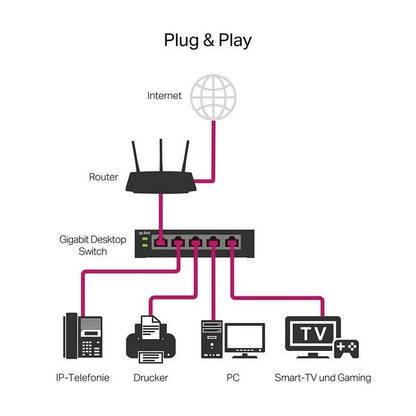

Plug and play, no configuration needed
Durable, high-quality professional metal casing
Smart management via web interface and downloadable utility
Green technology reduces energy consumption
Technical specifications
| : | |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | YesPorts & Interfaces |
| Number of basic switching RJ-45 Ethernet ports | 16 |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper), number of ports | 16Connection |
| Network standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Supported cable types | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI / MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN,Protocol-based VLAN |
| Number of VLANs | 32Data transmission |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Store and forward | Yes |
| Number of queues | 4 |
| Jumbo Frames support | Yes |
| Jumbo Frames | 9000Security |
| IGMP | Yes |
| Loop protection | YesDesign |
| Rack mounting | No |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mounting | Yes |
| Certification | FCC, CE, RoHSPerformance |
| Plug and Play | YesPower control |
| Power consumption (max) | 9.3 WPower over Ethernet (PoE) |
| Power over Ethernet (PoE) | NoEnvironmental conditions |
| Operating temperature range | 0 - 40 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity range | 10 - 90% |
| Storage relative humidity range | 5 - 90%Weight and dimensions |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mmPackaging |
| Cables included | AC |
| Quick setup guide | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
Data sheet
| No. of Ports | 16 |
| Transmission | Gigabit 10/100/1000 |
