Brand: TP-Link
TP-LINK GIGABIT 24 PORT SWITCH + 2 POE+ TL-SL1226P
TP-LINK GIGABIT 24 PORT SWITCH + 2 POE+ TL-SL1226P
SKU:TL-SL1226P
Couldn't load pickup availability
TP-Link TL-SL1226P Professional Switch with 24 high-power PoE+ ports. Plug and Play, with PoE transmission for Surveillance up to 250 m. Compliance with the 802.3af / at PoE+ standard supports up to 30 W on each PoE port. The total power of 250 W PoE for all 24 PoE ports makes it suitable for a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Description
Features:
24× 10/100 Mbps RJ45 PoE+ ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
High PoE power up to 30 W per port and a total of 250 W PoE.
Up to 250m data and PoE power transmission distance in extender mode, ideal for surveillance systems.
Priority mode ensures high priority on ports 1-8, guaranteeing the quality of sensitive applications such as video monitoring.
Isolation mode allows separation of client traffic for enhanced security and performance, with one click.

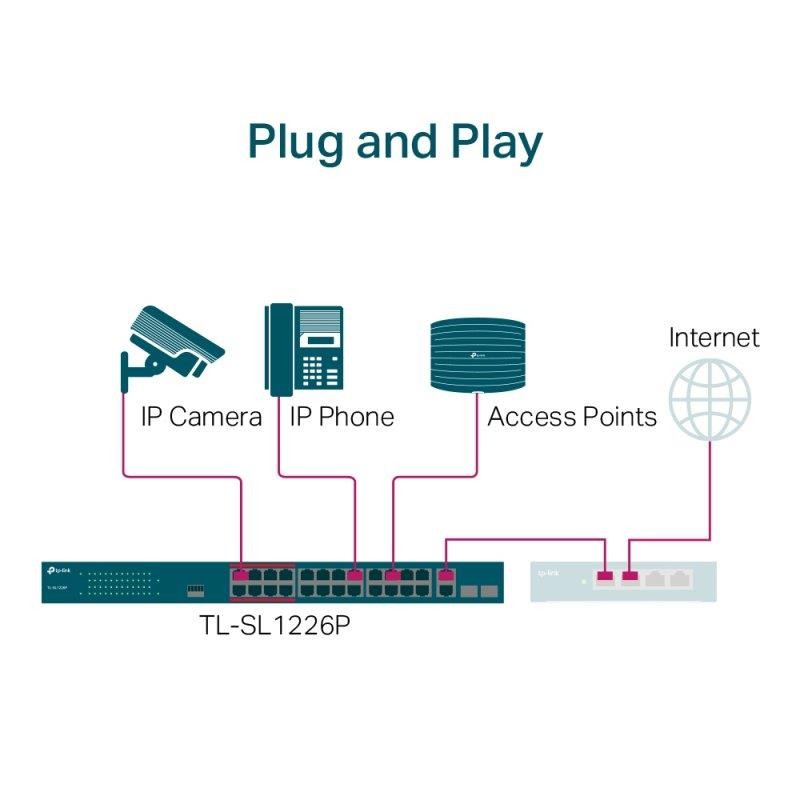

Plug and play, no configuration or installation required.
Technical specifications
| TP-Link TL-SL1226P: | |
| Management featuresSwitch type | Unmanaged |
| Ports and InterfacesQuantity of basic RJ-45 Ethernet switching ports | 24 |
| Basic RJ-45 Ethernet switching port type | Fast Ethernet (10/100) |
| Quantity of Fast Ethernet (copper) ports | 24 |
| Gigabit Ethernet (copper), quantity of ports | 2 |
| Combo SFP Number of ports | 2 |
| ConnectionNetwork standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Supports MAC address auto-learning | Yes |
| Supports MAC address auto-aging | Yes |
| Data transmissionSwitching capacity | 8.8 Gbit/s |
| MAC address table | 8000 entries |
| Store and forward | Yes |
| DesignRack mounting | Yes |
| Form factor | 1U |
| Product color | Grey |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Power controlPower supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption | 18.32 W |
| Power consumption (max) | 294 W |
| Power over Ethernet (PoE)Power over Ethernet (PoE) | Yes |
| Power over Ethernet Plus (PoE+) Number of ports | 24 |
| Power per Power over Ethernet (PoE) port | 30 W |
| Power over Ethernet (PoE) Budget | 250 W |
| Environmental conditionsOperating temperature range | 0 - 50 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity range | 10 - 90% |
| Storage relative humidity range | 5 - 90% |
| Heat dissipation | 1002.54 BTU/h |
| Weight and dimensionsWidth | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| PackagingQuick start guide | Yes |
| Mounting rack | Yes |
| Package width | 528 mm |
| Package depth | 250 mm |
| Package height | 80 mm |
Data sheet
| No. of Ports | 24 |
| Transmission | Gigabit 10/100/1000 |
| PoE | Yes |
